Spec

• Filtration area, m

  ²

  : 0.43
• Hold-up volume, mL: 175
• Processing capacity, L: 600?1200
• Length, Inch (cm): 10 (25)
• Seal material: Silicone
• Device material: Polypropylene
• Material: Polyethersulfone
• Code: Code 7
• Application: Retrovirus removal
• Brand name: Viresolve
• Main application: Protein Purification
• Package: Double easy open bag
• Form: Cartridge
• Quantity/box: 1

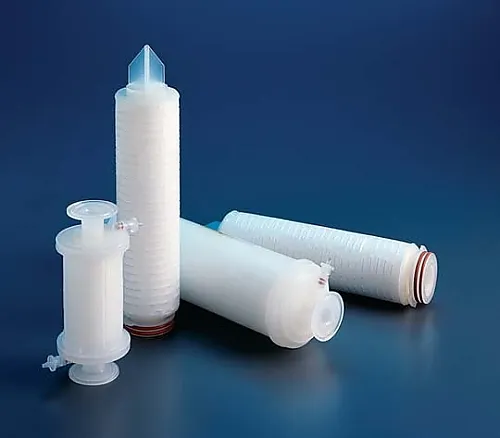

• Overview: Viresolve NFR cartridge filter 10in. code 7
• Product name: Viresolve cartridge filter
• Air diffusion flow rate, 23 °C:


  16mL/min at 340kPa (50psig) water-wet
• Cartridge code: Code 7 (2-226) with O-ring/locking tab spear
• Maximum differential pressure, kPa (psid): Positive direction - 552 (80) at 25℃; reverse direction - 345 (50) at 25℃
• Sterilization: SIP for 30 minutes at 126℃; autoclave sterilization 1 time for 60 minutes at 126℃; shipping in non-sterilization
• Total extract: The extractables level was equal to or less than 35


  mg per 10-inch cartridge after a 10


  minute 1.5


  LPM/ft2 flush and 24


  hours in water at controlled room temperature.
• Potassium permanganate reduced substance: Effluent after flashing with 4L of water conforms to USP Oxidizable Substances Test
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
