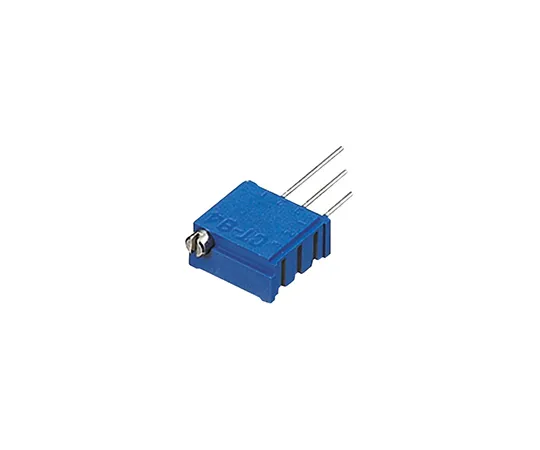

63-4809-02 Semi-Fixed Resistor 1 kΩ 0.5 W CT-94EW1kOhm
model:
63-4809-02
brand:
Copal Electronics
Product Description
Product Model: 63-4809-02Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-4809-02
Product Brand: Copal Electronics
Features
- Cermet Trimmer CT-94E Series (18 Rotation Type)
- Green lead-free and cadmium-free. Thin design with a thickness of 4.8 mm. Fine setting is possible (18 revolutions). Sealed structure
Spec
- Number of Pieces: 1
- Maximum resistance: 1 kΩ
- Mounting Type: Through Hole
- Speed: 18
- bearing: top adjustment
- Rated power: 0.5 W
- Series: CT-94
- *** styles: pins
- Tolerance: +/- 10%
- Temperature coefficient: +/- 100ppm/deg. C
- Height: 9.6 mm
- Operating temperature Min: -55°C
- Operating temperature mAx: +125°C
- RoHS Compliance Status: Compliance
- Securities Code: 474-7539
