Spec

• Filtration area, m

  ²

  : 0.69
• Diameter, cm (inch): 7.1 (2.8)
• Length, Inch (cm): 10 (25)
• Support material: Polyester
• Seal material: Silicone
• Device material: Polypropylene
• Material: Cellulose mixed ester
• Code: Code 7
• Format: Double Layer
• Brand name: Milligard
• Main application: Laboratory Filtration
• Package: Double easy open bag
• Form: Cartridge
• Quantity/box: 3

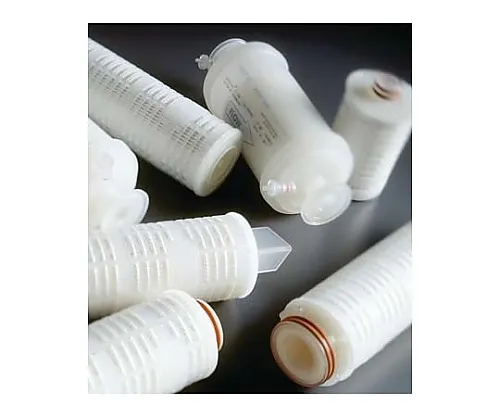

• Overview: Milligard cartridge filter 10in. code 7 0.5μm
• Product name: Milligard cartridge filter
• Cartridge code: Code 7 (2-226) with O-ring/locking tab spear
• Nominal bore diameter, μm: 1.2 / 0.5
• Maximum input pressure, kPa (psi): 3.5 (50) @ 25


  °C
• Maximum differential pressure, kPa (psid): 345 (50) @ 25


  °C
• Sterilization: Autoclave sterilization or SIP sterilization of 121° for 30 minutes 10 times
• Total extract: The extractables level was equal to or less than 50


  mg per 10-inch cartridge after 24


  hours in water at controlled room temperature.
• Potassium permanganate reduced substance: Effluent after flashing with 12L of water conforms to USP Oxidizable Substances Test
