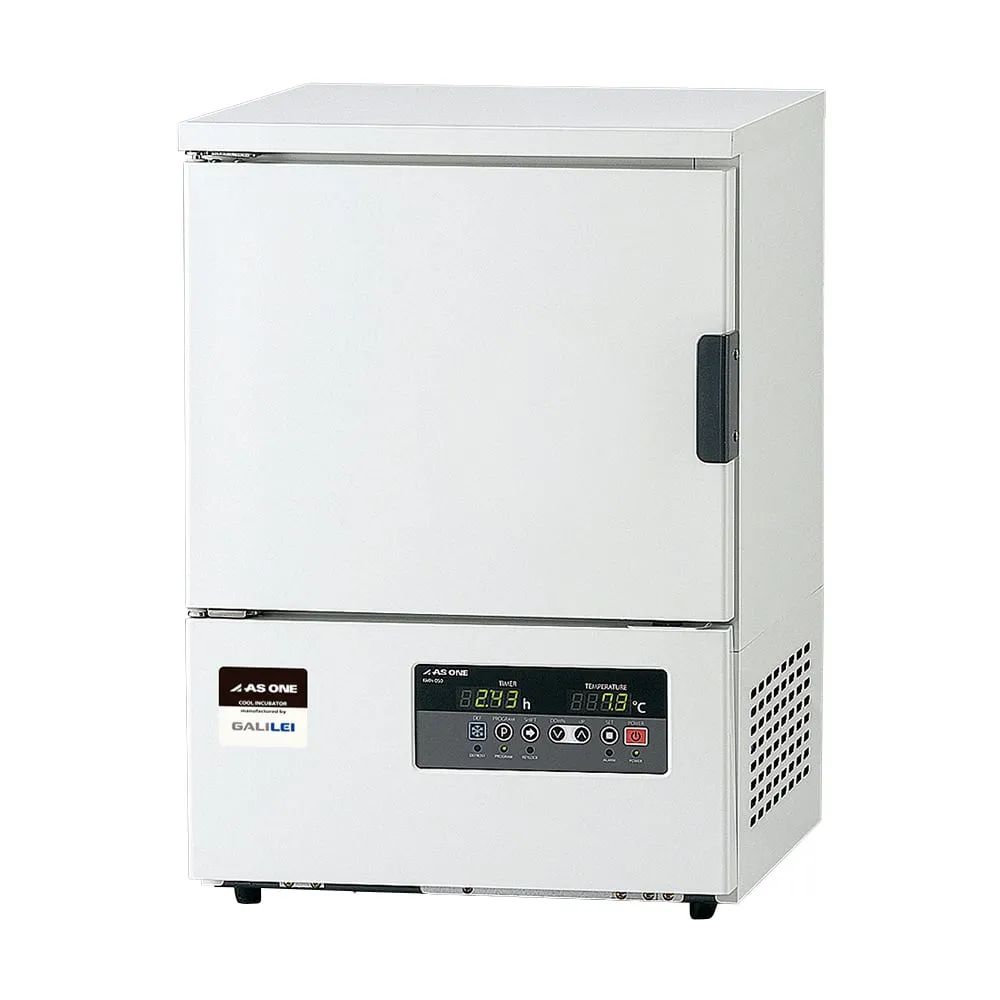

1-423-01-28 Cool Incubator 50 L with Pre-shipment Validation KMH-050
Product Description
Product Model: 1-423-01-28Product Brand: AS ONE Corpora […]
Contact Us
Product Details
Product Model: 1-423-01-28
Product Brand: AS ONE Corporation
Features
- Cool quickly to -15°C.
- There is no need for cleaning or treatment of wastewater (drainage outlets, drainage tanks, etc.).
- When the temperature is abnormal, the digital display and buzzer are ***d.
- The temperature setting can be set in 0.5°C increments. In addition, the temperature band around 37°C (35~40°C) can be set in 0.1°C increments.
Spec
- Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
- Validate (FAT) before shipping.
- After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
- App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
- *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
- Temperature points: 3 points at 5 degrees Celsius
- External dimensions: 483 x 487 (554) x 690 mm * The sizes in () include projections.
- Internal dimensions: 400 x 335 x 370 mm
- Contents: 50 L
- Materials: Exterior/Resin Baked Coated Steel, Interior/Stainless Steel
- Temperature setting range: -15 to + 50 degrees C
- Compressor output: 85 W
- Refrigerant: R -134 a
- Refrigerator ON/OFF Control/+/- 1.5 degrees C (5.0 degrees C set, no load), Heater Proportional Control/+/- 0.5 degrees C (37.0 degrees C set, no load)
- Temperature distribution: +/- 2.0 degrees C (setting 5.0 degrees C, ambient temperature 30 degrees C, no load), +/- 0.5 degrees C (setting 37.0 degrees C, ambient temperature 20 degrees C, no load)
- Circulation method: Lower back (callout) to upper back (suction)
- Defrosting method: Heater defrost method (microcomputer control)
- Function: Program operation (8 steps, 2 patterns) continuous repetition (1 step 0 ~ 99 hours, memory backup about 48 hours)
- Alarm functions: door alarm, temperature anomaly, sensor anomaly, overrise prevention, earth leakage breaker
- Power supply: 100 VAC, 50/60 Hz
- Power cord length: 3 m
- Power plug: grounded 3P plug (L shape)
- Maximum power consumption (50/60 Hz): 270/275
- Weight: approximately 40 kg
- Number of shelf nets: 2
- Legs: Rubber legs
- This product is compatible with the Validation Service (IQ/OQ). Please contact us.
- *The on-site validation service is a service that performs installation qualification (IQ) and operational performance qualification (OQ) at the installation site and submits an inspection form.
- *Shipping, carrying-in, installation and assembly costs are required separately. Please inquire.
- *Since this product is a physical and chemical culture and refrigeration equipment, it may not be ***d for medical treatment or similar activities or purposes.
- *If you would like to request a local IQOQ, please contact us separately. We need your installation address for the estimate.
