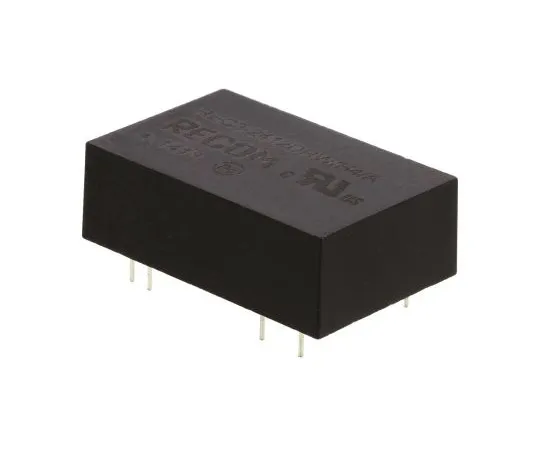

63-4807-24 Recom REC3 3W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out ±12V dc Medical REC3-2412DRW/H4/A
Product Description
Product Model: 63-4807-24Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-4807-24
Product Brand: Recom
Features
- EN60950-1, UL60950-1, EN60601-1. Operating temperature is without derating. Recom 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - REC3 Series. 2kVDC (H2 suffix) 4kVdc (H4 suffix) or 6kVdc (H6 suffix) Isolation Regulated outputs 2:1 or 4:1 (Z suffix) wide range input Efficiency up to 85% UL94V-0 package material Short circuit protection, auto restarting DIP24 miniature package
Spec
- Quantity：1piece
- Output Voltage : ±12V dc
- Input Voltage Range : 18 → 36 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 4kV dc
- Power Rating : 3W
- Output Current : ±125mA
- Mounting Type : Through Hole
- Number of Outputs : 2
- Medical Approved : Yes
- Package : DIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Depth : 10.2mm
- CODE No.:473-5457
