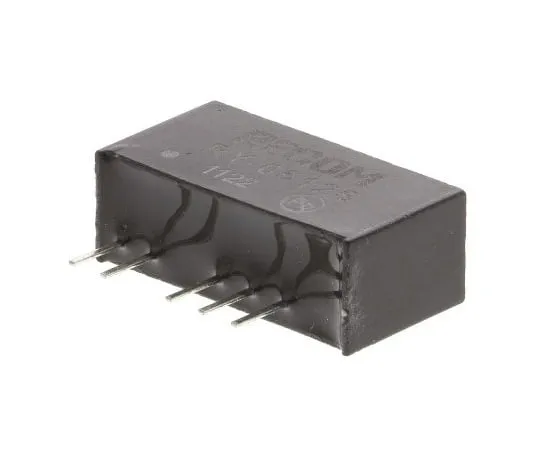

63-4807-23 Recom RY 1W Isolated DC-DC Converter Through Hole, Voltage in 4.75 → 5.25 V dc, Voltage out 12V dc RY-0512S
Product Description
Product Model: 63-4807-23Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-4807-23
Product Brand: Recom
Features
- Operating temperature range is with derating above 70°C. Recom 1W SIP Single/Dual Output Regulated Isolated DC-DC Converter - RY Series. Regulated output Control pin for remote On/Off 1kVdc isolation UL94V-0 package material No heatsink required Fully encapsulated SIP7 package
Spec
- Quantity：1piece
- Output Voltage : 12V dc
- Input Voltage Range : 4.75 → 5.25 V dc
- Input Voltage Nominal : 5 V dc
- Isolation Voltage : 1000V dc
- Power Rating : 1W
- Output Current : 84mA
- Mounting Type : Through Hole
- Number of Outputs : 1
- Efficiency : 66%
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +70°C
- Length : 19.65mm
- CODE No.:473-5356
