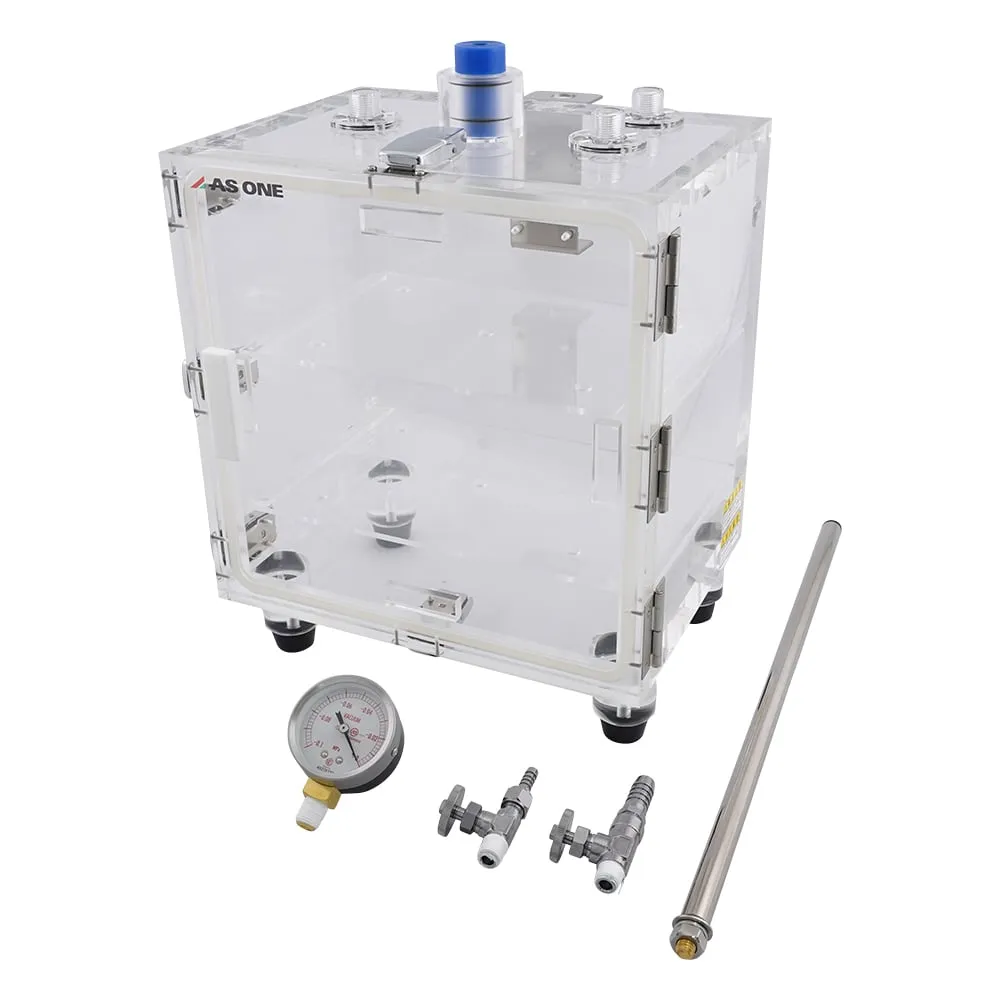

1-4211-01 Vacuum Degassing Apparatus VD-VL
Product Description
Product Model: 1-4211-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-4211-01
Product Brand: AS ONE Corporation
Features
- Bubbles contained in the sample can be easily defoamed by stirring in a vacuum environment.
- The body is made of transparent acrylic, so you can easily observe the inside during the experiment.
Spec
- Model number: VD-VL
- External dimension (excluding projections): 300 x 222 x 360mm
- Internal dimensions: 260 x 180 x 260mm
- Material: Body/Transparent PMMA (acrylic), Valve, vacuum gauge mounting portion/PC (polycarbonate)
- Capacity: 12L
- Plate thickness: 20mm
- Number of shelf boards: 2 stages
- Decompression tolerance: 1Torr (approx 133Pa)
- Vacuum valve: Small/outer diameter φ8mm hose nipple, Large/outer diameter φ14mm hose nipple
- Weight: 11.4kg
- Accessories: φ8mm vacuum seal for stirring rod, strut for mounting agitator (φ16mm)
- Recomm***ed vacuum pump: 1-4148-11 high vacuum diaphragm type dry Teflon vacuum pump DTC-22 (corrosion resistance type), 1-671-06 dry vacuum pump DA-20D, 1-672-07 oil-sealed rotary vacuum pump G-50SA
- *Clamp and agitator are not included in the package. *This is a tornado agitator device.
