Spec

• Filtration area, m

  ²

  : 0.35
• Filter bore diameter, μm: 0.1
• Diameter, cm (inch): 6.9 (2.7)
• Length, Inch (cm): 5 (12.5)
• Support material: Polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Material: Hydrophilic PVDF
• Code: Code 7
• Filter brand name: Durapore(R)
• Brand name: Durapore
• Main application: Laboratory Filtration
• Package: Double easy open bag
• Form: Cartridge
• Quantity/box: 1

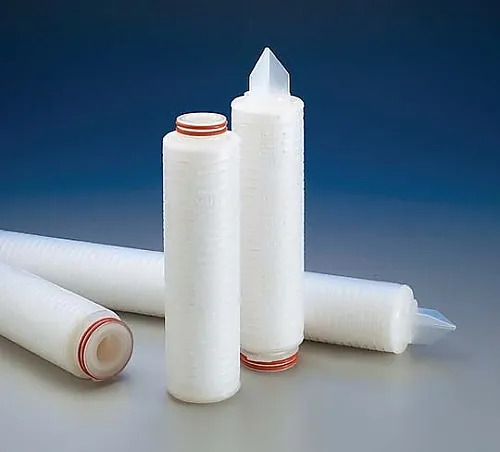

• Overview: Durapore cartridge filter 5in. 0.1μm code 7
• Product name: Durapore cartridge filter
• Air diffusion flow rate, 23 °C:


  10mL/min at 390kPa (56psig) water-wet
• Cartridge code: Code 7 (2-226), with O-ring/locking tab
• Bubble point, 23 °C:


  483kPa (70psig) water-wet and air
• Maximum input pressure, kPa (psi): Forward


  - 5.5 (80) @ 25


  ℃; 1.7 (25) @ 80


  ℃; 0.35 (5) @ 135


  ℃; Backward


  - 3.5 (50) @ 25


  ℃
• Maximum differential pressure, kPa (psid): Forward


  - 552 (80) @ 25


  ℃; 172 (25) @ 80


  ℃; 34 (5) @ 135


  ℃; Backward


  - 345 (50) @ 25


  ℃
• Flow rate, L/min: 7.5 @ 70


  kPa ΔP
• Wettability: Hydrophilic
• Sterilization: SIP of 135℃ for 30 minutes, 30 times; autoclave sterilization of 126℃ for 60 minutes 30 times
• Potassium permanganate reduced substance: Will meet the USP Oxidizable Substances Test requirements after a water flush of ? 500mL
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
