Spec

• Filtration area, m

  ²

  : 1.2
• Filter bore diameter, μm: 0.5 / 0.2 / 0.22
• Diameter, cm (inch): 6.9 (2.7)
• Length, Inch (cm): 20 (50)
• Support material: Polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Pre-filter material: Cellulose mixed ester
• Material: Hydrophilic PVDF
• Code: Code 7
• Filter brand name: Durapore(R)
• Brand name: Durapore
• Main application: Laboratory Filtration
• Package: Double easy open bag
• Form: Cartridge
• Quantity/box: 3

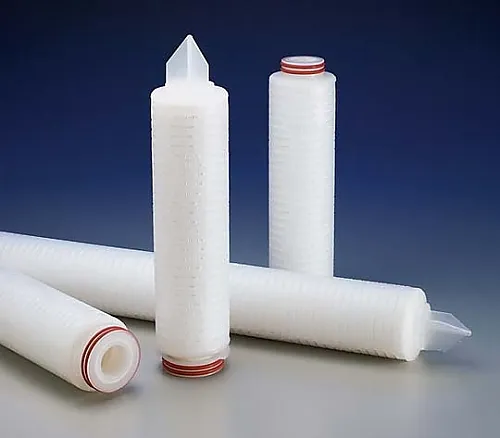

• Overview: Durapore multimedia cartridge filter 20in. 0.5 + 0.2 + 0.22μm code 7
• Product name: Durapore cartridge filter
• Air diffusion flow rate, 23 °C:


  21.6mL/min @ 280kPa (40 psig) in water
• Cartridge code: Code 7 (2-226) with O-ring/locking tab spear
• Bubble point, 23 °C:


  345kPa (50 psig) air with water
• Maximum input pressure, kPa (psi): Forward - 5.5 (80) @ 25℃; 1.7 (25) @ 80℃; 0.35 (5) @ 135℃; reverse - 3.5 (50) @ 25℃, intermittent
• Maximum differential pressure, kPa (psid): Forward - 552 (80) @ 25℃; 172 (25) @ 80℃; 34 (5) @ 135℃; reverse - 345 (50) @ 25℃, intermittent
• Wettability: Hydrophilic
• Sterilization: Autoclave sterilization or SIP of 123° for 30 minutes, 6 times
• Total extract: The extractables level was equal to or less than 70


  mg per 10-inch cartridge after 24


  hours in water at controlled room temperature.
• Potassium permanganate reduced substance: Will meet the USP Oxidizable Substances Test requirements after a water flush of ? 10L
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
