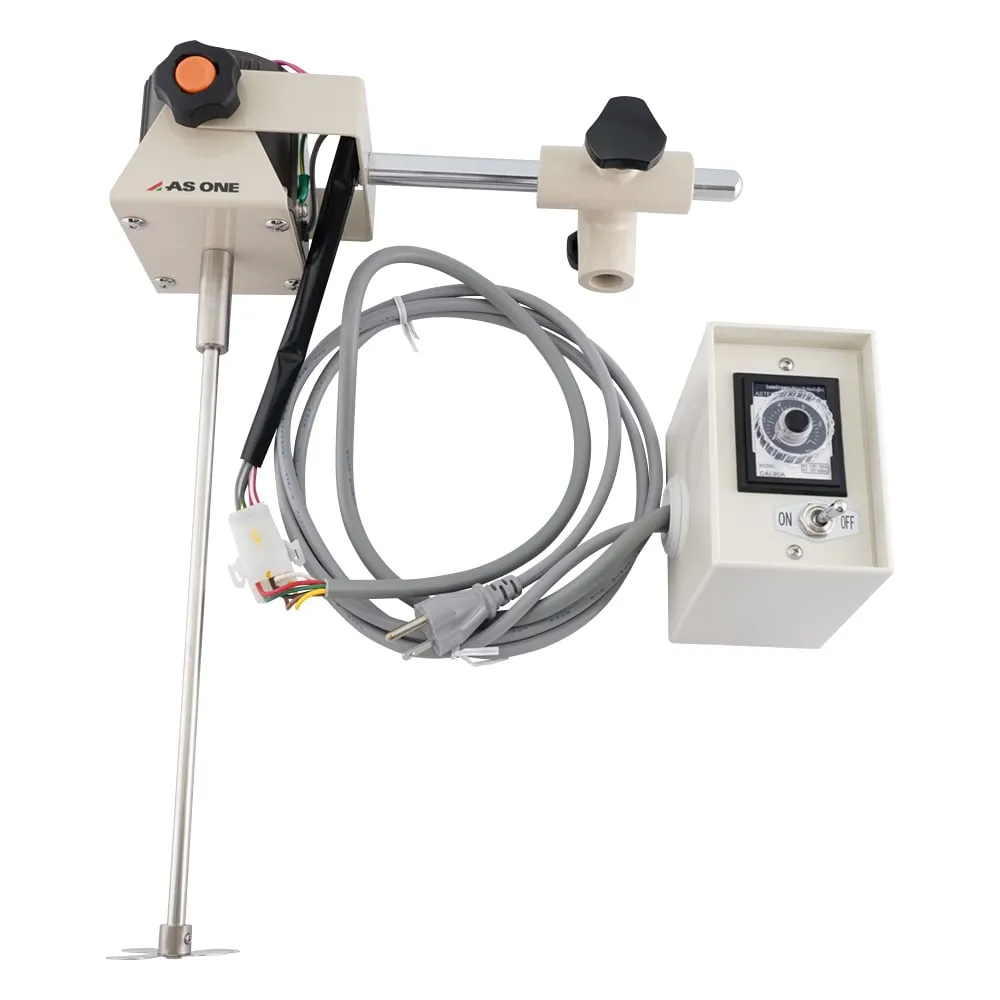

1-4194-41 Simple agitator, general-purpose compact type SS-PS1
Product Description
Product Model: 1-4194-41Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-4194-41
Product Brand: AS ONE Corporation
Features
- It has a swing-type bracket that allows you to change the angle of attachment.
- An analog knob type allows you to adjust the rotation speed intuitively.
- The control part is a remote control type and it is easy to stir in a draft.
- This is an entry model propeller agitator.
Spec
- Specifications: General Purpose Small Type
- Motor unit size (mm): 110 x 80 x 100
- Motor power (W): 25
- Number of pieces: 1
- Motor output: 25 W
- Power supply: 100 VAC 50/60 Hz
- Speed control range: 90 ~ 1400 rpm (50 Hz), 90 ~ 1700 rpm (60 Hz)
- Speed control system: Analog knob type
- Maximum torque: 0.14 N m (at 1200 rpm)
- Weight: 3.6 kg, remote control/0.4 kg
- Remote control unit size: 76 x 116 x 116 mm
- Applicable stand post diameter: phi 16 mm
- Accessories: Stirring bar (with phi 8 x 300 mm, propeller type stirring blade phi 61 mm), cross clamp
- *Use a stirring rod with a metal attachment.
- *A stand is not included.
