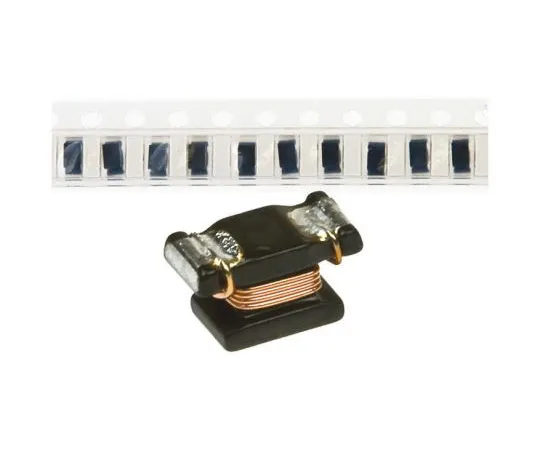

63-4806-53 Murata LQH31MN Series Type 1206 (3216M) Wire-wound SMD Inductor 10 μH ±10% Wire-Wound 100mA Idc Q:35 LQH31MN100K03L
Product Description
Product Model: 63-4806-53Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-4806-53
Product Brand: Murata
Features
- Murata 1206 LQH31MN Series Wire Wound Inductor. Wide inductance range High Q value at high frequencies and low DC resistance Small size (3.2x1.6x1.8mm) and tight pitch mounting Low DC resistance and large current Both flow and reflow soldering heat resistance
Spec
- Quantity：1bag(20pieces)
- Inductance : 10 μH
- Maximum DC Current : 100mA
- Package/Case : 1206 (3216M)
- Length : 3.2mm
- Depth : 1.6mm
- Height : 1.8mm
- Dimensions : 3.2 x 1.6 x 1.8mm
- Tolerance : ±10%
- Maximum DC Resistance : 2.5Ω
- Series : LQH31MN
- Maximum Self Resonant Frequency : 20MHz
- Minimum Quality Factor : 35
- CODE No.:469-2861
