Spec

• Filtration area, m

  ²

  : 0.69
• Filter bore diameter, μm: 0.45
• Diameter, cm (inch): 6.9 (2.7)
• Length, Inch (cm): 10 (25)
• Support material: Polypropylene
• Seal material: Fluorine rubber
• Device material: Polypropylene
• Material: Hydrophilic PVDF
• Code: Code 0
• Filter brand name: Durapore(R)
• Brand name: Durapore
• Main application: Laboratory Filtration
• Form: Cartridge
• Quantity/box: 1

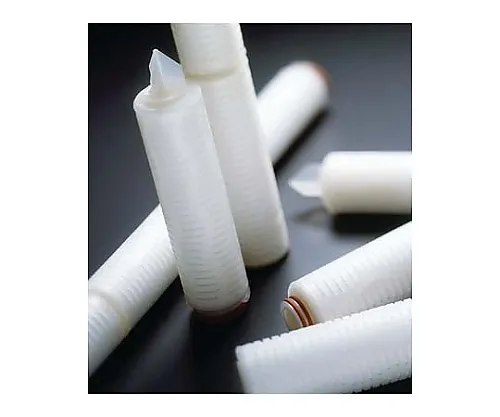

• Overview: Durapore CVHI cartridge filter 10in. 0.45μm code 0
• Product name: Durapore cartridge filter
• Air diffusion flow rate, 23 °C:


  15mL/min at 150kPa (22psig) water-wet
• Cartridge code: Code 0 (2-222) O-ring
• Bubble point, 23 °C:


  193kPa (28 psig) air with water
• Maximum input pressure, kPa (psi): Forward - 5.5 (80) @ 25℃; 1.7 (25) @ 80℃; 0.35 (5) @ 135℃; reverse - 3.5 (50) @ 25℃, intermittent
• Maximum differential pressure, kPa (psid): Forward - 552 (80) @ 25℃; 172 (25) @ 80℃; 34 (5) @ 135℃; reverse - 345 (50) @ 25℃, intermittent
• Flow rate, L/min: 30 @ 56


  kPa ΔP
• Wettability: Hydrophilic
• Sterilization: SIP 30 times for 30 minutes at 121℃; autoclave sterilization 30 times for 60 minutes at 121℃
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
