Spec

• Filtration area, m

  ²

  : 0.69
• Filter bore diameter, μm: 0.22
• Diameter, cm (inch): 6.9 (2.7)
• Length, Inch (cm): 10 (25)
• Support material: Polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Material: Hydrophilic PVDF
• Code: Code 7
• Filter brand name: Durapore(R)
• Brand name: Durapore
• Main application: Laboratory Filtration
• Package: Double easy open bag
• Form: Cartridge
• Quantity/box: 3

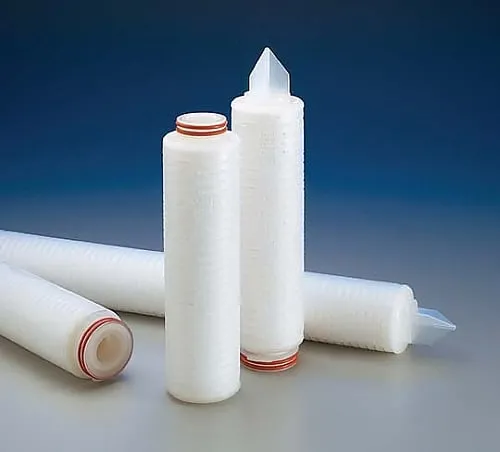

• Overview: Durapore cartridge filter 10in. 0.22μm code 7
• Product name: Durapore cartridge filter
• Air diffusion flow rate, 23 °C:


  13.3mL/min @ 280kPa (40 psig) in water
• Cartridge code: Code 7 (2-226) with O-ring/locking tab spear
• Bubble point, 23 °C:


  345kPa (50 psig) air with water
• Maximum input pressure, kPa (psi): Forward


  - 5.5 (80) @ 25


  ℃; 1.7 (25) @ 80


  ℃; 0.35 (5) @ 135


  ℃; Backward


  - 3.5 (50) @ 25


  ℃
• Maximum differential pressure, kPa (psid): Forward


  - 552 (80) @ 25


  ℃; 172 (25) @ 80


  ℃; 34 (5) @ 135


  ℃; Backward


  - 345 (50) @ 25


  ℃
• Flow rate, L/min: 50 @ 140


  kPa ΔP
• Wettability: Hydrophilic
• Sterilization: SIP of 135℃ for 30 minutes, 30 times; autoclave sterilization of 126℃ for 60 minutes 30 times
• Potassium permanganate reduced substance: Conform to USP Oxidizable Substances Test after flashing with next water ?1L
