Spec

• Filtration area, m

  ²

  : 0.69
• Filter bore diameter, μm: 0.22
• Diameter, cm (inch): 6.9 (2.7)
• Length, Inch (cm): 10 (25)
• Support material: Polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Material: Hydrophobicity PVDF
• Code: Code 0
• Filter brand name: Durapore(R)
• Brand name: Durapore
• Main application: Laboratory Filtration
• Package: Double easy open bag
• Form: Cartridge
• Quantity/box: 3

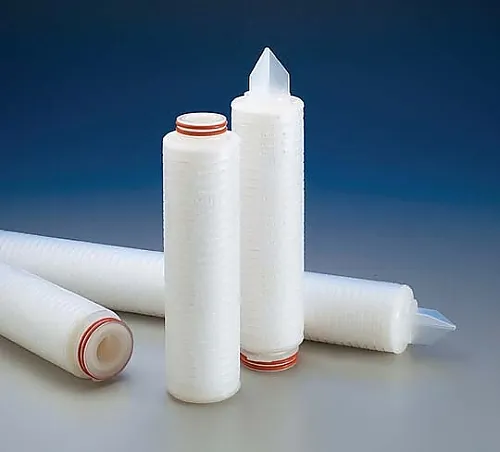

• Overview: Durapore cartridge filter 10in. 0.22μm hydrophobicity code 0
• Product name: Durapore cartridge filter
• Cartridge code: Code 0 (2-222) O-ring
• Bubble point, 23 °C:


  124kPa (18psig) water
• Maximum input pressure, kPa (psi): Forward


  - 5.5 (80) @ 25


  ℃; 1.7 (25) @ 80


  ℃; 0.35 (5) @ 135


  ℃; Backward


  - 3.5 (50) @ 25


  ℃
• Maximum differential pressure, kPa (psid): Forward


  - 552 (80) @ 25


  ℃; 172 (25) @ 80


  ℃; 34 (5) @ 135


  ℃; Backward


  - 345 (50) @ 25


  ℃
• Wettability: Hydrophobicity
• Sterilization: SIP 30 times for 30 minutes at 126℃; autoclave sterilization 30 times for 60 minutes at 126℃
• Nitrogen diffusion flow rate, 23 °C:


  10mL/min at 170kPa (25psig) water-wet
• Total extract: The extractables level was equal to or less than 20


  mg per 10-inch cartridge after 24


  hours in a 70/30%


  IPA/water mixture at controlled room temperature.
