Spec

• Filtration area, m

  ²

  : 2.07
• Filter bore diameter, μm: 0.65
• Diameter, cm (inch): 6.9 (2.7)
• Length, Inch (cm): 30 (75)
• Support material: Polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Pre-filter material: Cellulose mixed ester
• Material: Hydrophilic PVDF
• Code: Code 7
• Filter brand name: Durapore(R)
• Brand name: Durapore
• Main application: Laboratory Filtration
• Package: Double easy open bag
• Form: Cartridge
• Quantity/box: 3

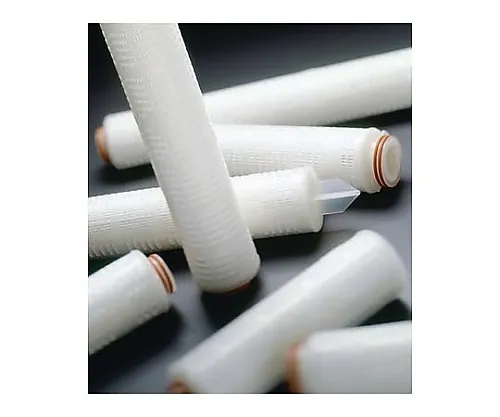

• Overview: Durapore cartridge filter with pre-filter 30in. 0.65μm code 7
• Product name: Durapore cartridge filter
• Air diffusion flow rate, 23 °C:


  30mL/min at 62kPa (9psig) water-wet
• Cartridge code: Code 7 (2-226) with O-ring/locking tab spear
• Bubble point, 23 °C:


  965


  mbar (14


  psig) air with water
• Maximum input pressure, kPa (psi): Forward


  - 5.5 (80) @ 25


  °C; 1.7 (25) @ 80


  °C; 0.35 (5) @ 121


  °C; Reverse


  - 1.7 (25) @ 25


  °C
• Maximum differential pressure, kPa (psid): Positive direction - 552 (80) at 25℃; 172 (25) at 80℃; 34 (5) at 121℃; reverse direction - 172 (25) at 25℃
• Wettability: Hydrophilic
• Sterilization: SIP sterilization 8 times for 30 minutes at 121℃ or autoclave sterilization 8 times for 60 minutes at 121℃
• Total extract: The extractables level was equal to or less than 45


  mg per 10-inch cartridge after 24


  hours in water at controlled room temperature.
• Potassium permanganate reduced substance: Conform to USP Oxidizable Substances Test after flashing with next water ?1L
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
