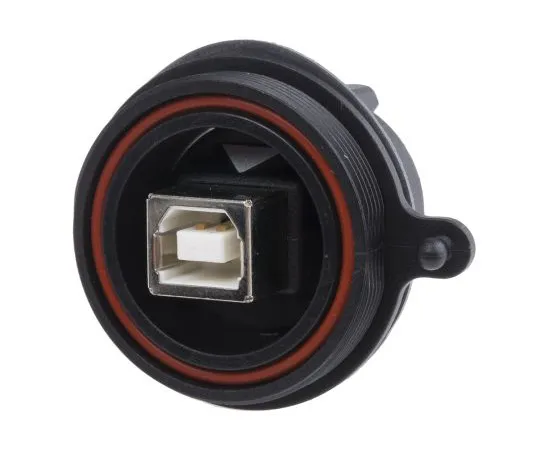

63-4806-30 Bulgin Straight Panel Mount Female Version 2.0 Type B USB Connector PX0842/B
Electronic/Electrical Parts and Controll Equipments

63-4806-30 Bulgin Straight Panel Mount Female Version 2.0 Type B USB Connector PX0842/B

model: 63-4806-30
brand: Bulgin

Product Description

Product Model: 63-4806-30Product Brand: Bulgin Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4806-30
Product Brand: Bulgin

Features

  • Bulgin Buccaneer Sealed USB Data Connectors. Bulgin ‘s comprehensive offering of single ***ed USB A sealed *** to standard USB B type and USB B sealed *** to standard USB A cable assemblies in a variety of types and lengths and type A and type B USB sealed front and rear panel mount connectors. The screw coupling USB connectors are dust and waterproof when mated (IP68 and IP69K) with visual mating indication and offer low and high speed bus connections of 1.5Mbs to 480Mbs, high noise immunity and EMI protection with RoHS compliance. Suitable for PC and peripheral applications amongst others. These sealed USB ‘s only become IP68 rated when they are mated with another unit or have a dust cap.. Features and Benefits:.

Spec

  • Quantity:1piece
  • G***er : Female
  • Termination Method : Screw Down
  • Body Orientation : Straight
  • Contact Material : Copper Alloy
  • Mounting Type : Panel Mount
  • USB Version : 2.0
  • Voltage Rating : 30 V ac
  • Current Rating : 1A
  • Maximum Operating Temperature : +70°C
  • Minimum Operating Temperature : 0°C
  • Series : Buccaneer
  • CODE No.:468-6327
