63-4806-26 Bulgin Buccaneer Series, Female Cat5e RJ45 Connector PX0833
Product Description
Product Model: 63-4806-26Product Brand: Bulgin Features […]
Contact Us
Product Details
Product Model: 63-4806-26
Product Brand: Bulgin
Features

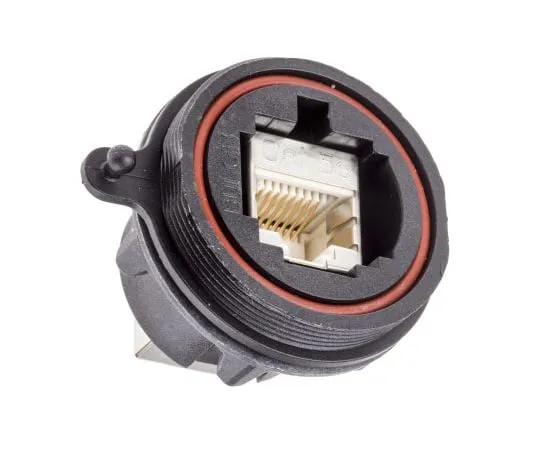

- sealing gasket. Patchcords have their own technical specification - see stock no. ; 468-6254 468-6254 (typical of range). See also Buccaneer USB Connectivity – stock no ; 468-6327 468-6327 is typical of range. Bulgin PX0833 RJ45 Coupler. The Bulgin PX0833 is a Cat5e RJ45 connector for mounting into the front of panels and cabinets. This Rj45 coupler enables access to the system behind a panel or cabinet, whilst also offering an IP68 waterproof rating. The PX0833 is perfect for *** in harsh environments where the panel may come into contact with water and other elements. The coupler is mounted into a single hole in the panel and a sealing gasket is provided to seal the edge of the connector. Once fitting, a standard patchcord can be plugged into the rear of the PX0833 coupler. There are a range of connectors that the PX0834 mates with. Please refer to the list below for more information of what connectors are compatible.. Panel mounted IP68 waterproof Shielded system Cat5e Data rate up to 100MHz Chemical resistant Flame retardant. Mates with: PX0836 PX0837 2m - ( ; 468-6254 468-6254 ) PX0837 3m - ( ; 468-6260 468-6260 ) PX0837 5m - ( ; 468-6276 468-6276 ) PX0838 2m - ( ; 468-6282 468-6282 ) PX0838 3m - ( ; 468-6298 468-6298 ) PX0838 5m - ( ; 468-6305 468-6305 ) PX0834/A - ( ; 468-6226 468-6226 ) PX0834/B - ( ; 841-9128 841-9128 ) What is Cat5e? Cat 5 cables are twisted pair cables designed for computer networking applications. It is essentially a standard to ensure the cable meets specifications and is suitable for infrastructure cabling in computer networking. What is a shielded RJ45 connector? Shielded RJ45 connectors feature a metal casing inside and, when ***d with a shielded cable, prevents interference of signal across the length of the cable. Shielded versions are suitable for applications which may cover a longer distance.
Spec
- Quantity:1piece
- G***er : Female
- LAN Category : Cat5e
- Mounting Type : Panel Mount
- Number of Ways : 8
- Connector Type : RJ45
- Shield Type : Shielded
- Orientation : Straight
- IP Rating : IP68
- Depth : 32.95mm
- Series : Buccaneer
- Contact Material : Phosphor Bronze
- Contact Plating : Nickel
- CODE No.:468-6232
