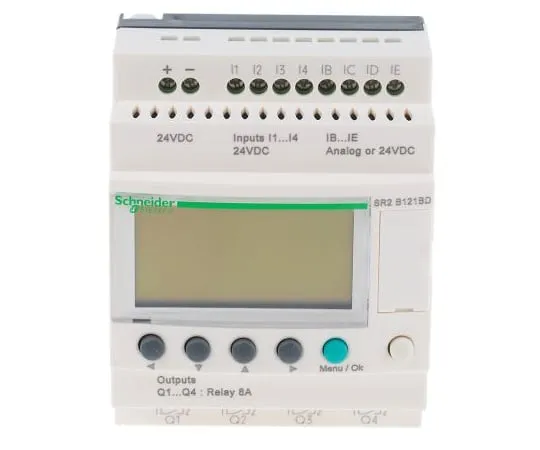

63-4806-20 Schneider Electric Zelio Logic Module, 24 V dc Relay, 8 x Input, 4 x Output With Display SR2B121BD
Electronic/Electrical Parts and Controll Equipments

63-4806-20 Schneider Electric Zelio Logic Module, 24 V dc Relay, 8 x Input, 4 x Output With Display SR2B121BD

model: 63-4806-20
brand: Schneider Electric

Product Description

Product Model: 63-4806-20Product Brand: Schneider Elect […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4806-20
Product Brand: Schneider Electric

Features

  • Schneider Electric / Zelio Logic SR2/SR3 Series / Logic Module. The Zelio Logic SR2/SR3 series by Schneider Electric provides an alternative to solutions based on cable logic or specific cards. This range is compact, with Modbus or Ethernet communication extension modules compatible with the device. Signal the device remotely, or on-site, you can control the module on your terms. Features and benefits:. Easily programmable interface, safe programming allows you to run coherence testing, simulations and monitoring modes to ensure complete control over your devices. A real-time clock built in B>6 to 10 outputs ; 4 to 10 inputs (dep***ing on model) allowing you versatility in the number of stand-alone devices you need to input/output to. B>Low power consumption with a generous supply voltage ranging from 12 V dc up to 24 V dc (see specifications for model specific voltage). DIN Rail or panel mounting with screw terminals dep***ing on your need. B>Cost-effective in reducing space needed with the compact models vs. other basic modules. Intuitive programming with Zelio Soft 2 software using function block diagram (FBD) : this has 32 pre-programmed functions, 7 Grafcet functions, 6 logic functions. OR contact language (LADDER) : 12 pre-programmed functions. B>LCD backlight display for easier accessibility in darker areas. 10 years back-up (EEPROM memory). Applications - where can I *** it?. Logic modules are ***ful for when you need to perform a process without human intervention, therefore the list is not limited. Logic Modules may even be connected to other Logic Modules for example. Below you'll find some typical applications: Control systems for smaller machinery/replacement of controls Lighting management Heating and air conditioning controls

Spec

  • Quantity:1piece
  • Series : Zelio Logic
  • Supply Voltage : 24 V dc
  • Output Type : Relay
  • Number of Outputs : 4
  • Input Type : Analogue, Discrete
  • Number of Inputs : 8
  • Mounting Type : DIN Rail
  • Display Included : Yes
  • Length : 71.2mm
  • Dimensions : 71.2 x 107.6 x 59.5 mm
  • Programming Interface : Computer, Operating Panel
  • Module Type : Logic Control Module
  • Output Current : 8 A
  • CODE No.:468-4438
