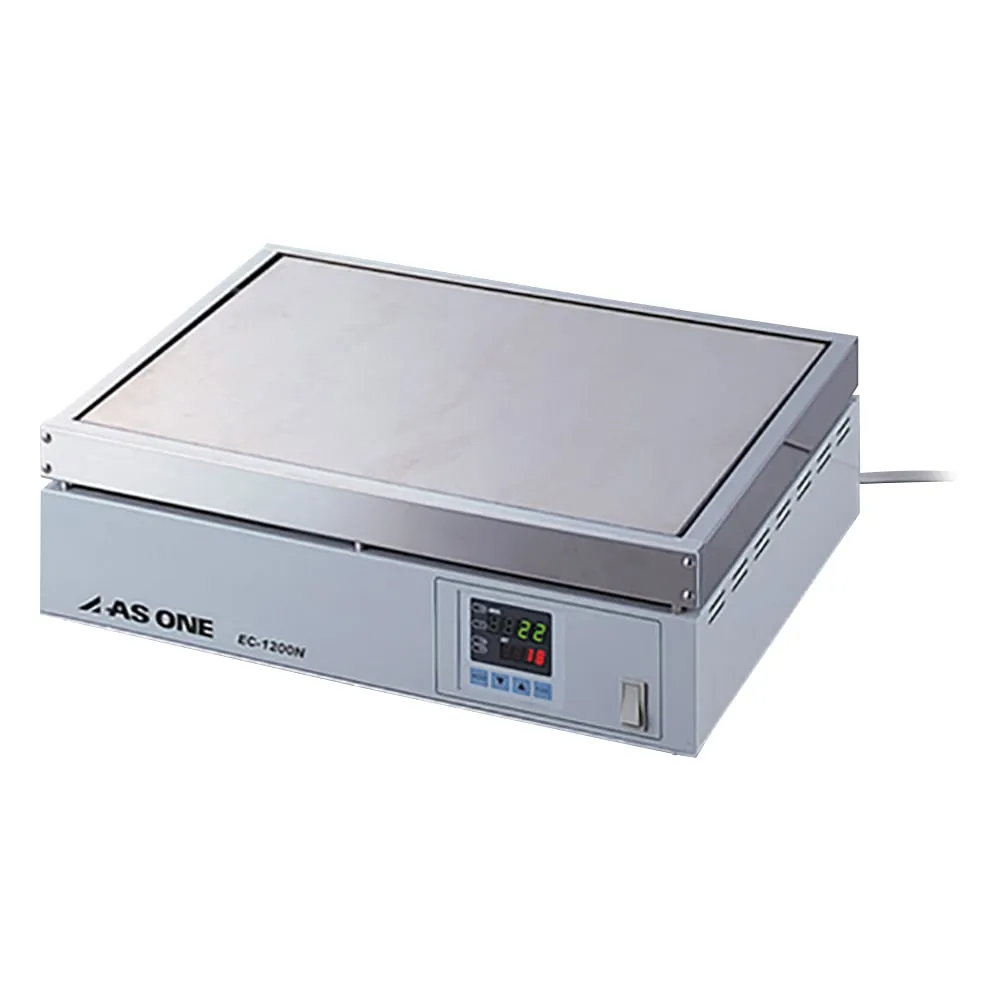

1-4115-11-22 EC Hot Plate with Pre-Shipment Inspection Document EC-1200N
Product Description
Product Model: 1-4115-11-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-4115-11-22
Product Brand: AS ONE Corporation
Features
- Large area uniform temperature distribution type with flat plate heater as heat source.
- Three timer patterns can be set.
Spec
- Maximum temperature: 300°C
- Plate Size: 412 x 312 mm
- Plate Material: Aluminum
- Temperature Control System: PID Control with Auto Tuning Function
- Body Size: 450 x 350 x 133 mm
- Load Capacity: Approx. 15 kg(However, distributed load on 80% of plate area)
- Weight: Approx. 11 kg
- Power: 100 VAC 50/60Hz max. 1 kW
- Power Cord Length: 2 m (3P Plug)
- RS-485 communication type can also be manufactured. Please inquire.
- This product can provide inspection and inspection services. Please contact us.
- *The inspection and inspection service is a service that inspects the control system (internal temperature measurement, etc.) and the electric locomotive at the time of shipment or at the customer's site, and issues inspection reports.
