Spec

• Filtration area, m

  ²

  : 1.3
• Filter bore diameter, μm: 0.2
• Diameter, cm (inch): 6.9 (2.7)
• Length, Inch (cm): 20 (50)
• Support material: Polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Material: Hydrophobicity PTFE
• Code: Code 7
• Filter brand name: Aerex
• Brand name: Aerex
• Package: Double easy open bag
• Form: Cartridge
• Quantity/box: 3

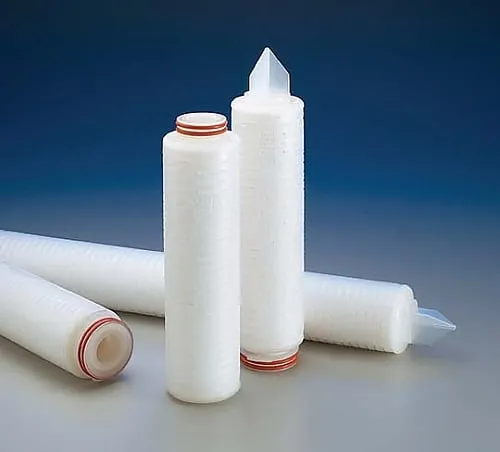

• Overview: Aerex CTGB cartridge filter 20in. 0.2μm code 7
• Product name: Aerex cartridge filter
• Air diffusion flow rate, 23 °C:


  30mL/min at 69kPa (10psig) 60/40% IPA/water
• Cartridge code: Code 7 (2-226) with O-ring/locking tab spear
• Hydro-Core test: Water flow rate 0.40mL/min per 10-inch cartridge at 138kPa (20psig)
• Bubble point, 23 °C: 90kPa (13psig) 60/40% IPA/water
• Maximum input pressure, kPa (psi): Forward direction - 7 (100) at 25℃; 1.7 (25) at 80℃; 0.35 (5) at 145℃; backward direction - 5.2 (75) at 25℃
• Maximum differential pressure, kPa (psid): Forward direction - 689 (100) at 25℃; 172 (25) at 80℃; 34 (5) at 145℃; backward direction - 5.2 (75) at 25℃
• Wettability: Hydrophobicity
• Sterilization: SIP 200 times for 30 minutes at 145℃ (forward 150/backward 50)
• Nitrogen diffusion flow rate, 23 °C:


  30mL/min at 69kPa (10psig) 60/40% IPA/water
• Total extract: The extractables level was equal to or less than 35


  mg per 10-inch cartridge after 24


  hours in a 70/30%


  IPA/water mixture at controlled room temperature.
