Spec

• Diameter, cm (inch): 7.0 (2.75)
• Length, Inch (cm): 20 (50)
• Seal material: Silicone
• Device material: Polypropylene
• Material: Polypropylene
• Brand name: Polygard
• Main application: Laboratory Filtration
• Form: Cartridge
• Quantity/box: 6

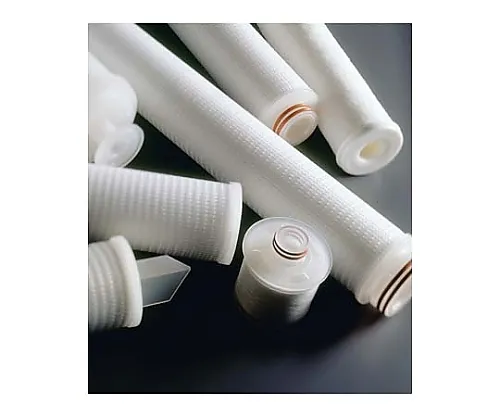

• Overview: Polygard-CR cartridge filter 20in. 1.0μm code 7 Silicone
• Product name: Polygard-CR cartridge filter
• Cartridge code: Code 7 (2-226) with O-ring/locking tab spear
• Nominal bore diameter, μm: 1.0
• Maximum input pressure, kPa (psi): 4.8 (70) @ 25


  °C
• Maximum differential pressure, kPa (psid): 483 (70) @ 25


  °C
• Sterilization: 30


  minutes heat water sterilization at 80


  ℃
• Wettability: Easily wetted with water
• Sterilization: Autoclave sterilization at 126℃ for 30 minutes or 10 times of SIP sterilization
• Total extract:


  50 mg, after 24-hour water immersion
• Potassium permanganate reduced substance: Will meet the USP Oxidizable Substances Test requirements after a water flush of ? 10L
