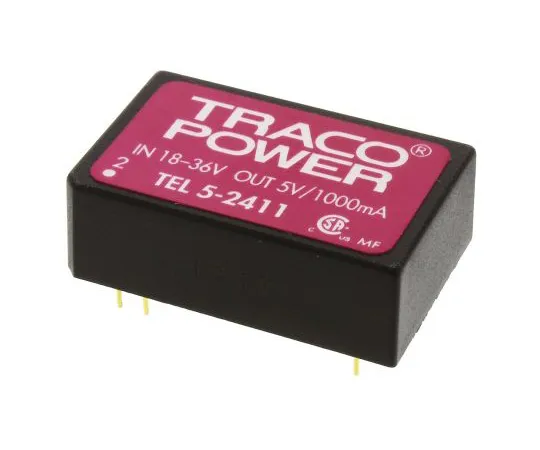

63-4804-38 TRACOPOWER TEL 5 5W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out 5V dc TEL 5-2411
Electronic/Electrical Parts and Controll Equipments

63-4804-38 TRACOPOWER TEL 5 5W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out 5V dc TEL 5-2411

model: 63-4804-38
brand: TRACOPOWER

Product Description

Product Model: 63-4804-38Product Brand: TRACOPOWER Feat […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4804-38
Product Brand: TRACOPOWER

Features

  • EN 60950-1, UL60950-1. Operating temperature is derated above 70° C, 2% Per °C. 3. Traco 3.96 to 6W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEL 5 Series. Wide 2:1 input range 1.5kV input/output isolation Input filtering to EN 55022A Continuous short circuit protection 24-pin DIP with industry standard pin-out

Spec

  • Quantity:1piece
  • Output Voltage : 5V dc
  • Input Voltage Range : 18 → 36 V dc
  • Input Voltage Nominal : 24 V dc
  • Isolation Voltage : 1.5kV
  • Power Rating : 5W
  • Output Current : 1A
  • Mounting Type : Through Hole
  • Number of Outputs : 1
  • Package : DIP 24, PDIP
  • Load Regulation : ±1%
  • Maximum Temperature : +85°C
  • Depth : 10.2mm
  • CODE No.:466-7102
