Electronic/Electrical Parts and Controll Equipments

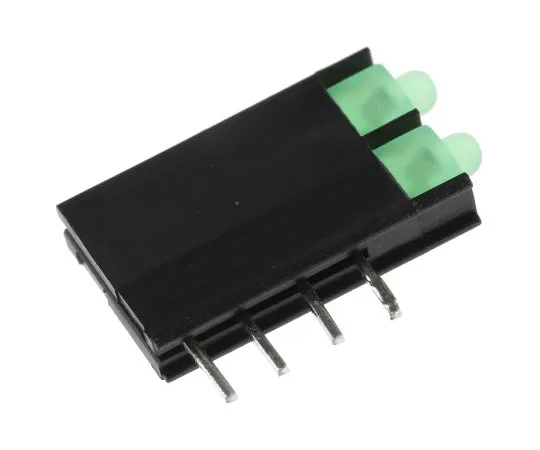

63-4804-13 Kingbright L-4060VH/2GD, Green Right Angle PCB LED Indicator, 2 LEDs, Through Hole 2.5 V L-4060VH/2GD
Product Description
Product Model: 63-4804-13Product Brand: Kingbright Feat […]
Contact Us
Product Details
Product Model: 63-4804-13
Product Brand: Kingbright
Features
- Kingbright 4060 Subminiature LED Indicators. The 4060 family, from Kingbright, are PCB LED indicators. They consist of subminiature LEDs within a black plastic housing. The housing positions the LEDs at a right angle to the board whilst providing a high contrast with the LED.. Features of the 4060 LED indicators: Multi level stacked Black plastic housing Right angle Through-hole mounting Wide viewing angle High reliability
Spec
- Quantity：1bag(10pieces)
- LED Colours : Green
- Number of LEDs : 2
- Mounting Type : Through Hole
- Supply Voltage : 2.5 V
- Number of Pins : 4
- Viewing Angle : 70 °
- Dominant Wavelength : 568 nm
- LED Orientation : Right Angle
- LED Material : GaP
- Dimensions : 15.24 x 2.5 x 8.6mm
- Length : 15.24mm
- Width : 2.5mm
- Height : 8.6mm
- Intensity : 10mcd
- CODE No.:466-4232
