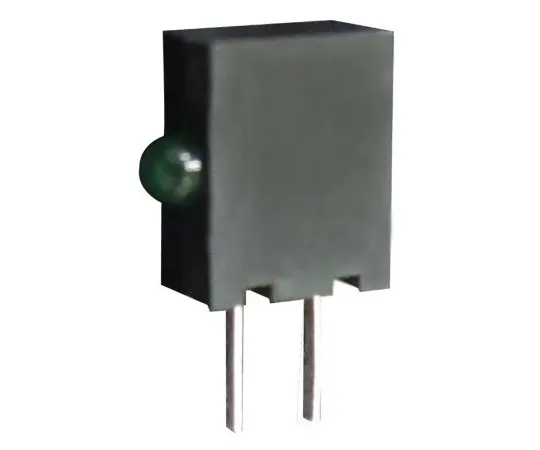

63-4804-11 Kingbright KM2520EH/1SGD, Green Right Angle PCB LED Indicator, Through Hole 2.5 V KM2520EH/1SGD
Product Description
Product Model: 63-4804-11Product Brand: Kingbright Feat […]
Contact Us
Product Details
Product Model: 63-4804-11
Product Brand: Kingbright
Features
- Kingbright 2520 Subminiature LED Indicators. The 2520 PCB LED indicators, from Kingbright, are available in single and quad block packages. They consist of subminiature LEDs within a black plastic housing. The housing holds the LEDs in place, at a right angle to the board.. Features of the 2520 PCB LED indicators: Subminiature LEDs Variety of colours Through-hole mounting Black plastic housing, right angle High-contrast UL 94 V-0 rated Diff***d lens
Spec
- Quantity：1bag(20pieces)
- LED Colours : Green
- Number of LEDs : 1
- Mounting Type : Through Hole
- Supply Voltage : 2.5 V
- Number of Pins : 2
- Viewing Angle : 40 °
- Dominant Wavelength : 568 nm
- LED Orientation : Right Angle
- LED Material : GaP
- Dimensions : 6.22 x 2.44 x 6.35mm
- Length : 6.22mm
- Width : 2.44mm
- Height : 6.35mm
- Intensity : 15mcd
- CODE No.:466-4204
