Spec

• Filtration area, m

  ²

  : 0.76
• Diameter, cm (inch): 7.4 (2.9)
• Length, Inch (cm): 20 (50)
• Support material: Polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Material: Borosilicate glass Fiber
• Code: Code 7
• Filter grade: AP15
• Filter brand name: Lifegard
• Brand name: Lifegard
• Main application: Laboratory Filtration
• Package: Double easy open bag
• Form: Cartridge
• Quantity/box: 3

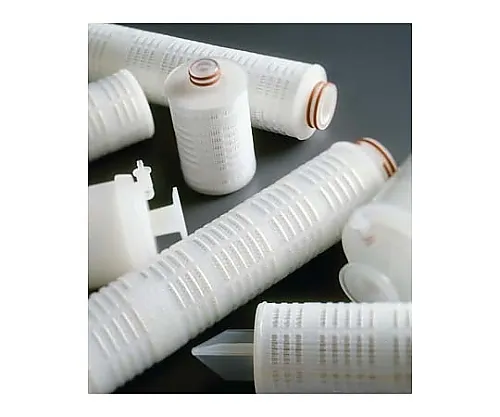

• Overview: Lifegard cartridge filter 20 in. 1.0μm code 7
• Product name: Lifegard cartridge filter
• Cartridge code: Code 7 (2-226) with O-ring/locking tab spear
• Nominal bore diameter, μm: 1.0
• Maximum input pressure, kPa (psi): 3.5 (50) @ 25


  °C
• Maximum differential pressure, kPa (psid): 345 (50) @ 25


  °C
• Sterilization: 30


  minutes heat water sterilization at 80


  ℃
• Sterilization: Autoclave sterilization or SIP sterilization of 121° for 30 minutes 10 times
• Total extract: The extractables level was equal to or less than 250


  mg per 10-inch cartridge after 24


  hours in water at controlled room temperature.
• Potassium permanganate reduced substance: Will meet the USP Oxidizable Substances Test requirements after a water flush of ? 5L
