Spec

• Filtration area, m

  ²

  : 1.65
• Filter bore diameter, μm: 0.45 / 0.22
• Diameter, cm (inch): 6.9 (2.7)
• Length, Inch (cm): 30 (75)
• Support material: Polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Material: Hydrophilic PVDF
• Code: Code 7
• Filter brand name: Durapore(R)
• Brand name: Durapore
• Main application: Laboratory Filtration
• Form: Cartridge
• Quantity/box: 3

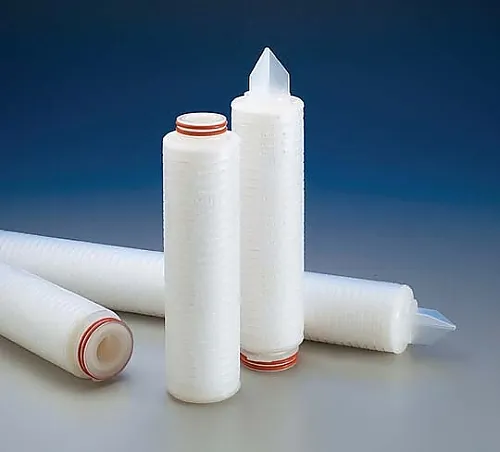

• Overview: Durapore cartridge filter 30 in. 0.45/0.22μm code 7
• Product name: Multi-layer Durapore cartridge filter
• Air diffusion flow rate, 23 °C:


  32.4mL/min @ 280kPa (40 psig) in water
• Cartridge code: Code 7 (2-226) with O-ring/locking tab spear
• Bubble point, 23 °C:


  345kPa (50 psig) air with water
• Maximum input pressure, kPa (psi): Forward - 5.5 (80) @ 25℃; 1.7 (25) @ 80℃; 0.35 (5) @ 135℃; reverse - 3.5 (50) @ 25℃, intermittent
• Maximum differential pressure, kPa (psid): Forward - 552 (80) @ 25℃; 172 (25) @ 80℃; 34 (5) @ 135℃; reverse - 345 (50) @ 25℃, intermittent
• Wettability: Hydrophilic
• Sterilization: SIP of 135℃ for 30 minutes, 30 times; autoclave sterilization of 126℃ for 60 minutes 30 times
• Potassium permanganate reduced substance: Will meet the USP Oxidizable Substances Test requirements after a water flush of ? 4.5L
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
