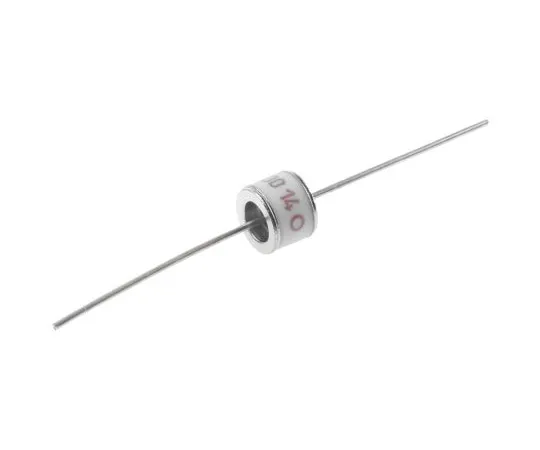

63-4800-49 EPCOS EHV Series 230V 5kA Axial 2 Electrode Arrester Gas Discharge Tube (GDT) B88069X0660S102
Product Description
Product Model: 63-4800-49Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-4800-49
Product Brand: EPCOS
Features
- Miniature Gas Filled, 5kA/5A. Over-voltage arresters for the protection of telecommunication systems and equipment with measuring, control and regulating lines Robust ceramic body Low impulse spark-over voltage
Spec
- Quantity：1piece
- Series : EHV
- Suppressor Type : 2 Electrode Arrester
- Maximum Surge Current : 5kA
- DC Spark Over Voltage : 230V
- Impulse Spark Over Voltage : <500 V, <600 V
- Maximum Voltage Rating : 230 V
- Mounting Type : Axial
- Dimensions : 8 (Dia.) x 6.05mm
- Length : 6.05mm
- Maximum Operating Temperature : +90°C
- Minimum Operating Temperature : -40°C
- CODE No.:461-4287
