Electronic/Electrical Parts and Controll Equipments

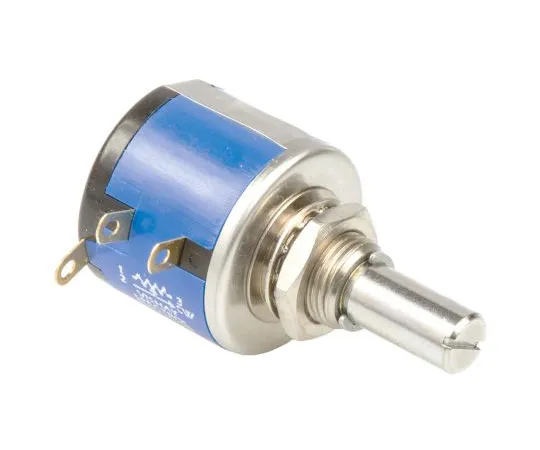

63-4800-38 Vishay 534 Series Wirewound Potentiometer with a 6.35 mm Dia. Shaft 10-Turn, 500Ω, ±5%, 2W, ±20ppm/°C, Panel Mount 534B1501JL
Product Description
Product Model: 63-4800-38Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4800-38
Product Brand: Vishay
Features
- 534 Series Rotary Potentiometers. Vishay ‘s range of high quality rotary potentiometers bring you the best build quality with a stainless steel shaft and solder lug terminals. With durability in mind the 534 series are rated for over one million lifecycles and are suitable for industrial control applications, medical instruments, wire cutting machines and welding machines. The 534 series are all rotary potentiometers. This means the shaft is ho***d by a knob. Turning the shaft will operate the wiper and adjust the resistance. Features and Benefits –.
Spec
- Quantity：1piece
- Maximum Resistance : 500Ω
- Number of Turns : 10
- Potentiometer Type : Linear
- Mounting Type : Panel Mount
- Shaft Diameter : 6.35 mm
- Power Rating : 2W
- Termination Style : Solder Lug
- Tolerance : ±5%
- Series : 534
- Length : 39.67mm
- Depth : 22.23mm
- Height : 26.99mm
- Dimensions : 39.67 x 22.23 x 26.99mm
- Temperature Coefficient : ±20ppm/°C
- CODE No.:460-7576
