Spec

• Filtration area, m

  ²

  : 0.18
• Diameter, cm (inch): 7.1 (2.8)
• Length, Inch (cm): 4 (10)
• Support material: Spun bonded polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Pre-filter material: Borosilicate glass Fiber
• Material: Cellulose mixed ester
• Code: Code N
• Format: Double Layer
• Brand name: Polysep
• Main application: Laboratory Filtration
• Package: Double easy open bag
• Form: Cartridge
• Quantity/box: 3

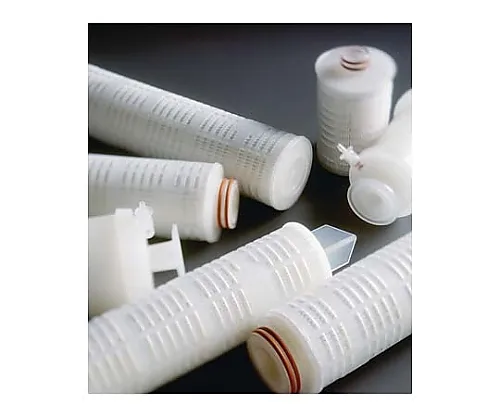

• Overview: Polysep II cartridge filter 4 in. 0.5μm code N
• Product name: Polysep II cartridge Filter
• Cartridge code: Code N (2-226), with O-ring/locking tab
• Nominal bore diameter, μm: 1.0 / 0.5
• Maximum input pressure, kPa (psi): 3.5 (50) @ 25


  °C
• Maximum differential pressure, kPa (psid): 345 (50) @ 25


  °C
• Sterilization: 30


  minutes heat water sterilization at 80


  ℃
• Sterilization: Autoclave sterilization or SIP sterilization of 121° for 30 minutes 10 times
• Total extract: The extractables level was equal to or less than 56


  mg per 4-inch cartridge after 24


  hours in water at controlled room temperature.
• Potassium permanganate reduced substance: Will meet the USP Oxidizable Substances Test requirements after a water flush of ? 2L
