8-5615-05 ［Discontinued］Stationary Type Gas Alerm JK-C2H4
model:
8-5615-05
category:
toner
Product Description
Product Model: 8-5615-05 Features It improves selectivi […]
Contact Us
Product Details
Product Model: 8-5615-05
Features
- It improves selectivity with alcohol and has low temperature and humidity dep***ence, so it detects gas with high accuracy.
- Since it is a long-life sensor, running cost can be reduced without the need for frequent sensor replacement.
- When the alarm setting value is exceeded, the external output is activated, and control of ventilation fan, rotary light, solenoid valve, etc. can be performed.
- Since sensor degradation moves to the safety side, safety management can be easily established.
Spec
- Model number: JK-C2H4
- Ethylene
- Sampling system: Diffusion method:
- Detection principle: Semiconductor method
- External output: 1a no voltage (100VAC 30VDC 5A resistance load in this regard)
- Power supply: 100AC+/-10% 50/60Hz
- Power cord length: 2.5m
- Power consumption: 6W or less
- Operating temperature range: - 10℃ to +40℃ (humidity 95%RH or less, no condensing)
- Size: 80 x 171 x 55mm
- Weight: 500g
- Accessories: Mounting bracket
- Alarm gas concentration: 1000ppm
Related product recommendations
You may also be interested in the following products
toner
64-0706-29 Mercury Rod Thermometer(Thin tube type) 0 ~ 100 °C (1 °C) Total submerged diameter 3 mm 1-72-1
model: 64-0706-29
brand: ANDO KEIKI
toner

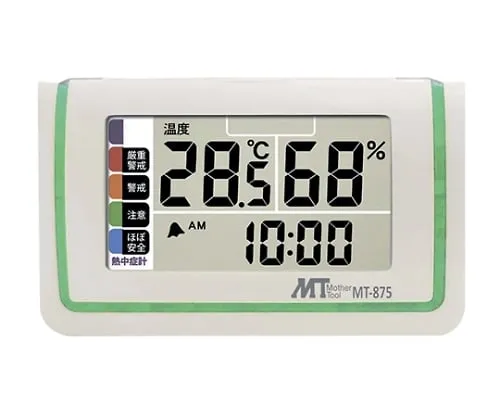

61-8513-74 ［Discontinued］Thermo-Hygrometer with Heatstroke Index Display MT-875
