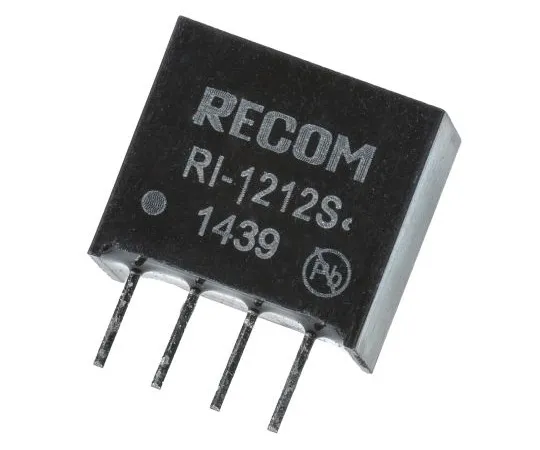

63-4800-14 Recom RI 2W Isolated DC-DC Converter Through Hole, Voltage in 10.8 → 13.2 V dc, Voltage out 12V dc RI-1212S
Product Description
Product Model: 63-4800-14Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-4800-14
Product Brand: Recom
Features
- Operating temperature is without derating. /P suffix de****s continuous short circuit protection. Recom 2W SIP Single Output Unregulated Isolated DC-DC Converter - RI Series. Industrial standard pin-out No heatsink required SIP4 package High efficiency (80% typ) Capacitor input filter Isolation voltage 1kVdc (min) Voltage; input ±10%, output ±5% UL94V-0 package material
Spec
- Quantity：1piece
- Output Voltage : 12V dc
- Input Voltage Range : 10.8 → 13.2 V dc
- Input Voltage Nominal : 12 V dc
- Isolation Voltage : 1kV
- Power Rating : 2W
- Output Current : 167mA
- Mounting Type : Through Hole
- Number of Outputs : 1
- Package : SIP
- Load Regulation : ±10%
- Maximum Temperature : +85°C
- Depth : 10.2mm
- CODE No.:459-8163
