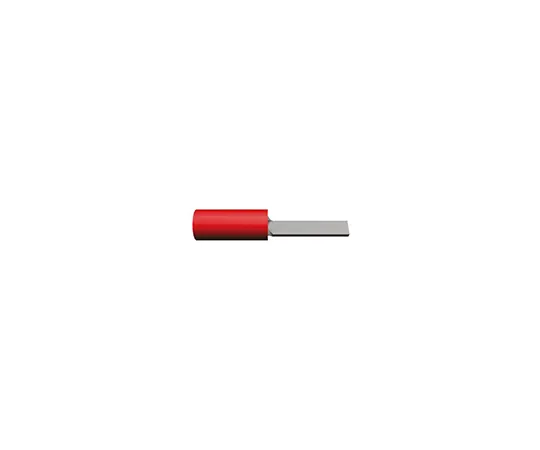

63-4799-75 TE Connectivity PIDG Series Insulated Crimp Blade Terminal 12mm Blade Length, 0.26mm² to 1.65mm², 22AWG to 16AWG, Red 150730
model:
63-4799-75
brand:
TE Connectivity
Product Description
Product Model: 63-4799-75Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4799-75
Product Brand: TE Connectivity
Features
- UL recognised. Not for *** with double wire. TE Connectivity PIDG Blade Wire Crimp Terminals. PIDG blade wire crimp terminals consisting of a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a nylon colour coded insulation sleeve. These PIDG blade wire crimp terminals are available with different barrel lengths and diameters to accept various wire sizes.
Spec
- Quantity：1bag(100pieces)
- G***er : Male
- Insulation : Insulated
- Insulation Material : Nylon
- Shrouded/Unshrouded : Unshrouded
- Maximum Wire Size mm² : 1.65mm²
- Minimum Wire Size AWG : 22AWG
- Overall Length : 28.57mm
- Inner Diameter : 3.2mm
- Blade Width : 2.39mm
- Blade Thickness : 0.84mm
- Colour : Red
- Contact Plating : Tin
- Contact Material : Copper
- CODE No.:457-5384
