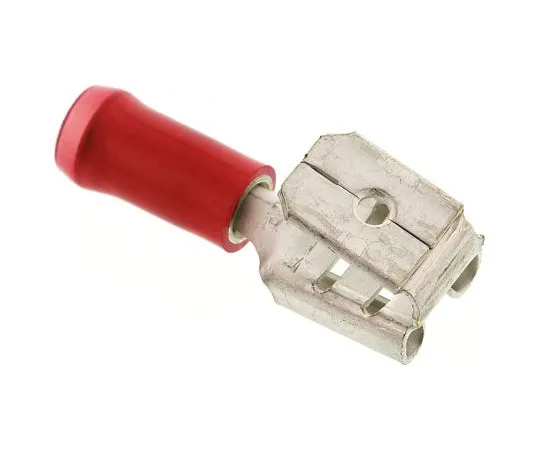

63-4799-73 TE Connectivity PIDG FASTON .250 Series Insulated Crimp Piggyback Terminal, 6.35 x 0.81mm, 0.3mm² to 1.5mm², 22AWG to 160834-2
model:
63-4799-73
brand:
TE Connectivity
Product Description
Product Model: 63-4799-73Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4799-73
Product Brand: TE Connectivity
Features
- TE Connectivity PIDG Faston 250 Piggyback Receptacle Wire Crimp Terminals. PIDG (Pre-Insulated Diamond Grip) Faston 250 quick disconnect piggyback receptacle wire crimp terminals with a mating area designed for uniform reliability in the most difficult circuit environments. These PIDG piggyback wire terminals consist of a precision-formed high conductivity copper body and barrel. The wire barrel is surrounded with both a copper and nylon colour coded sleeve. The copper sleeve surrounding the barrel provides improved wire insulation support after crimping allowing the wire to b*** without fraying the insulation or breaking the conductor. The nylon sleeves are colour coded according to wire-size to assist with identification. Inside the PIDG piggyback terminal wire barrel are serrations which provide maximum contact and tensile strength after crimping. The construction of these PIDG terminals and the *** of specialised tool dies allows for uniform insulation thickness under crimping pressure. This pressure is then transmitted evenly to the centre of the crimping area to produce a uniform and reliable crimp. These PIDG piggyback wire terminals also feature a funnelled wire entry which prevents turned back wire strands and allows fast wire insertion during high-speed production. Available with various wire, barrel and stud sizes, these PIDG piggyback terminals offer a versatile solution to a wide range of wiring applications. Features and Benefits. High conductivity copper body Copper sleeve for improved wire insulation support Serrations in wire barrel for maximum contact and tensile strength Colour coded sleeves for easy wire size and tooling identification Funnelled wire entry for easy wire insertion Design enables a reliable and uniform crimp. Application. These PIDG wire terminals are suitable for *** in a wide range of applications with many terminals meeting or exceeding the requirements of MIL-T-7928, Type II, Class 1 and 2. Applications include instruments/control, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace and appliances.
Spec
- Quantity:1bag(100pieces)
- Series : PIDG FASTON .250
- Insulation : Insulated
- Insulation Material : Nylon
- Minimum Wire Size mm² : 0.3mm²
- Maximum Wire Size mm² : 1.5mm²
- Minimum Wire Size AWG : 22AWG
- Maximum Wire Size AWG : 16AWG
- Tab Size : 6.35 x 0.81mm
- Colour : Red
- Contact Plating : Tin
- Tab Thickness : 0.81mm
- Tab Width : 6.35mm
- CODE No.:457-5362
