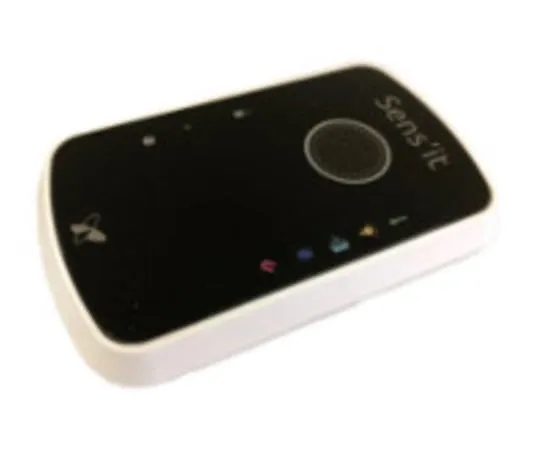

63-3117-11 Sigfox Sensor Device Sensit V3 (Sens' it Discovery) SENSIT-V3
Product Description
Product Model: 63-3117-11Product Brand: KYOCERA Corpora […]
Contact Us
Product Details
Product Model: 63-3117-11
Product Brand: KYOCERA Corporation
Features
- Sigfox is a type of communication network called a Low Power Wide Area (LPWA) that provides low-speed, low-capacity, low-cost, low-power, and long-distance communication. The Sens'it V3 is a hands-on Sigfox evaluation device with six different functions: temperature and humidity measurement, illumination measurement, door opening and closing detection, vibration detection, magnetic detection, and button detection.
- You can check the data sent by Sens'it on www.sensit.io or Sigfox Back*** Cloud. You can also check your location with Sigfox Atlas (a GPS free location service). Sens'it can also develop its own firmware using the SDK.
- Bundled Items
- Sens'it Main Unit
- Magnet
- MicroUSB Cable
- Velcro Strap
- Sens'it ***r manual
- Sens'it legal notice
- Caution
- * You can *** Sigfox free of charge for one year after the first communication. After the second year, you need to subscribe separately at "Sigfox Buy."
- * There are some areas where Sigfox is not yet available, so please check the coverage area on the Sigfox Coverage page.
- * For details on how to set Sens'it, refer to the Owner's Manual.
Spec
- Built-in sensor Temperature sensor -40 to + 120 ° C; Accuracy ± 0.5 ° C
- Humidity sensor 0 to 100%, accuracy ± 3.5% rH (20 to 80% rH)
- Acceleration sensor ± 2, 4, 8 g, precision 0.244, 0.488, 0.976 mg
- Magnetic sensor ± 1200 μT, resolution 0.1 μT/LSB
- Illuminance Sensor 0.01 to 64,000 lux
- Reed switch impression value 15 to 40 AT
- Sens' it VersionSens' it Version 3.3
- Battery Lipo 250 mAh battery
- Size 52 mm x 82 mm x 15 mm
- Weight: 50 g
- Waterproof, dust-proof IEC standards IP 54 compliant
- Radio characteristics Sigfox Ready Class 0 Transmit power: 10 dBm
- Operating Environment Temperature: -10 ° C to + 55 ° C Humidity: 30% to 90%
- *Sens'it is a registered trademark of Sigfox.
