2-2593-01-20 ［Discontinued］Ultrasonic Thickness Gauge With Calibration Certificate TI-56L
model:
2-2593-01-20
category:
toner
Product Description
Product Model: 2-2593-01-20 Spec Model number: TI -56 L […]
Contact Us
Product Details
Product Model: 2-2593-01-20
Spec
- Model number: TI -56 L
- No calibration certificate
- Usage: Thick
- Measuring method: Ultrasonic pulse reflection method
- Reproducibility:. + -. 0.1mm
- Accuracy of measurement: 1.5 to 19.9 mm/±0.1 mm, 20.0 to 250.0mm/±0.5% rdg (rdg stands for reading digits and stands for display value.)
- Frequency ***d: 5 MHz
- Minimum pipe size: outer diameter/approx. 30mm, thickness/approx. 1.5mm or more
- Probe: Cable length 1m, w/LEMO connector, Probe diameter φ13.0mm (Contact surface diameter 11.5 mm)
- Power supply : AA size battery x 1 piece (test attachment)
- Size: 69 x 30 x 144mm
- Weight (Including battery): Main unit/approx. 150g, Probe/50g
- Accessories: Probe, capanto, 5mm thickness calibration standard piece (Attached to the main unit), carrying case
- Measurement range: 1.5 to : 250.0mm
Related product recommendations
You may also be interested in the following products
toner

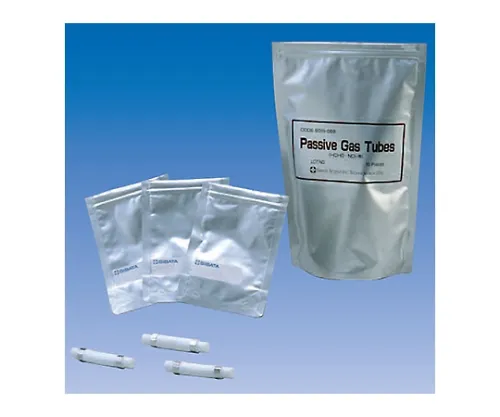

61-4432-43 ［Discontinued］Passive Gas Tube for Formaldehyde, Nitrogen Dioxide 10 080150-069
