Features

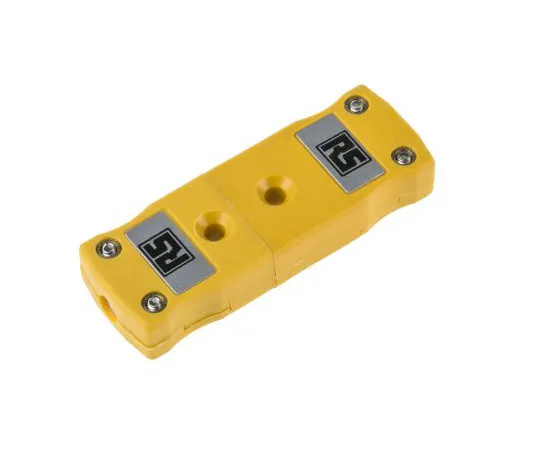

• RS PRO British Standard Colour Coded Miniature In-Line Thermocouple Plug and Socket Connector. From RS PRO a pair of thermocouple connectors consisting of a miniature in-line thermocouple plug and thermocouple socket connector. These thermocouple connectors are ideal for connecting your thermocouple probe or wire terminals to extension or compensating cables as well as providing a quick, safe and error-free way of replacing your existing thermocouples. The connector housings are made from a rugged glass-filled thermoplastic which is impact resistant and able to withstand high temperatures of up to 220°C. The terminals on the plug have a flat design and are polarised to ensure an accurate connection when mated with the female socket The housings of these miniature thermocouple connectors are colour coded in accordance with the formerly recognised BS (British Standard) with the thermocouple type clearly indicated on the front for easy identification. What is a Thermocouple Connector?. Thermocouple connectors are an accurate and convenient way of interconnecting your temperature sensing components. Using these connectors allows a chain to be formed from the measuring tip of your temperature sensor to the host computer or meter. It is important that all the components in the chain are made from the same thermocouple material to prevent any alteration or distortion of the original signal. To achieve this, thermocouple connectors have pins made from the same material as the thermocouple they are being ***d to connect or a compensating material. The connector housing has the thermocouple type clearly printed on it and is also colour coded to allow easy identification. The connector is opened up and the thermocouple wires are simply screwed down into place using two captive screw clamps. Features and Benefits. Pins made from true thermocouple alloys or compensating material for accurate signal transmission BS colour coding for quick and easy identification Polarised flat pin contacts for an accurate connection Made from rugged glass-filled thermoplastic Able to withstand a high temperature of 220°C For *** with stranded or solid wires Accepts thermocouple cable up to 4mm in diameter Simple captive screw clamp connection for quick assembly Polarity and thermocouple type clearly marked on housings. Applications. These miniature plug and socket connectors are ***d in any application where thermocouples are installed, ext***ed or replaced. Their robust construction makes these miniature thermocouple connectors ideal for *** even in the most demanding temperature measurement applications.
