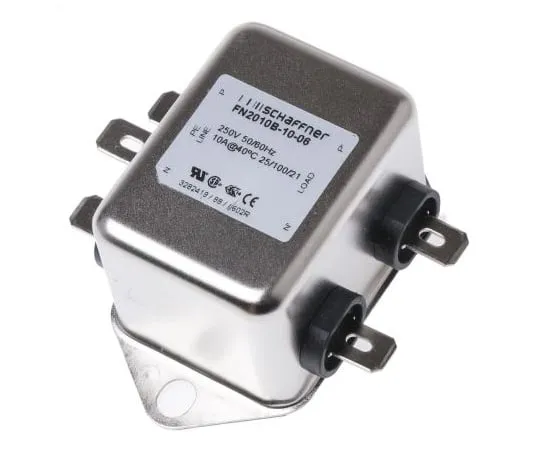

63-4798-84 Schaffner FN2010B Series 10A 250 V ac 400Hz Chassis Mount RFI Filter, with Tab Terminals FN2010B-10-06
Product Description
Product Model: 63-4798-84Product Brand: Schaffner Featu […]
Contact Us
Product Details
Product Model: 63-4798-84
Product Brand: Schaffner
Features
- UL recognised component, CSA certified, VDE. FN2010B Series. Schaffner FN2010 series general purpose EMI filters are designed for fast and easy chassis mounting. They provide a general purpose conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour. These filters cover a wide range of usage and offer a good size/ampage ratio. Applications. Consumer goods Electrical and electronic equipment Ho***hold equipment Medical equipment equipment Datacom equipment Office automation equipment
Spec
- Quantity：1piece
- Maximum Current Rating : 10A
- Maximum Voltage Rating : 250 V ac
- Mounting Type : Chassis Mount
- Termination Style : Tab
- Number of Stages : Single Stage
- Operating Frequency : 400Hz
- Length : 64mm
- Depth : 35mm
- Height : 29.3mm
- Inductance : 800 μH
- Leakage Current : 0.002 mA
- Maximum Operating Temperature : +100°C
- Resistance : 1MΩ
- CODE No.:455-8812
