Electronic/Electrical Parts and Controll Equipments

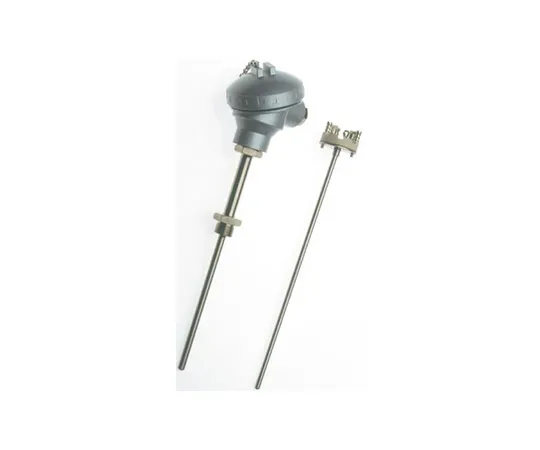

63-4798-63 RS PRO 4 wire PT100 Sensor, -100°C min +450°C max, 500mm Probe Length x 8mm Probe Diameter 455-3996
Product Description
Product Model: 63-4798-63Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4798-63
Product Brand: RS PRO
Features
- Replacement spring loaded inserts are supplied longer than the probe length to allow for insertion into the head. PRT Head ; Ext***ed Probe with Replacement Inserts. " BSP(P) process connection The extension is 12.7mm diameter and 75mm length 3 types of insertion length available Replaceable spring loaded inserts also available
Spec
- Quantity：1piece
- Sensor Type : PT100
- Probe Length : 500mm
- Probe Diameter : 8mm
- Minimum Temperature Sensed : -100°C
- Maximum Temperature Sensed : +450°C
- Termination Type : Connection Head
- Probe Material : Stainless Steel
- Process Connection : BSP 1/2
- Cable Entry Size : M20
- Number Of Wires : 4
- Accuracy : Class B
- CODE No.:455-3996
