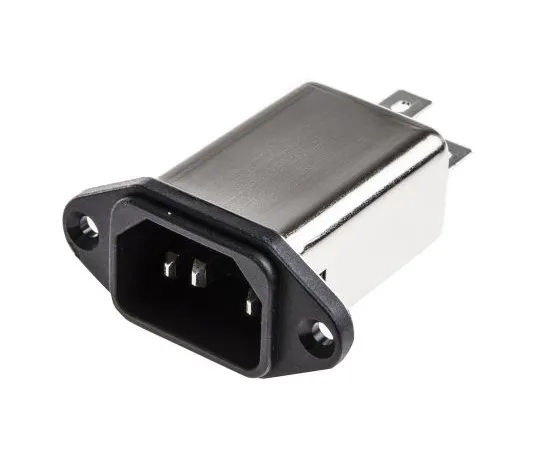

63-4798-26 Male C14 IEC Filter Panel Mount,faston,Rated At 3A,250 V ac Operating Frequency 0 → 400Hz FN9222-3-06
Electronic/Electrical Parts and Controll Equipments

63-4798-26 Male C14 IEC Filter Panel Mount,faston,Rated At 3A,250 V ac Operating Frequency 0 → 400Hz FN9222-3-06

model: 63-4798-26
brand: Schaffner

Product Description

Product Model: 63-4798-26Product Brand: Schaffner Featu […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4798-26
Product Brand: Schaffner

Features

  • UL listed, CSA certified (all types); VDE, SEV, SEMKO (up to 10A max.). FN9222 IEC 950 - Compact High Performance. From Schaffner the FN9222 IEC inlet filter combines an IEC inlet and mains filter with excellent filter attenuation in a small form factor. A wide selection on amperage ratings, output connections, mounting possibilities and filters are designed to offer you the desired solution. Can be ***d in a wide range of applications such as portable electrical ; electronic equipment, ho***hold equipment, single-phase ; switch-mode power supplies, test ; measurement equipment, medical equipment ; rack mounting equipment. Excellent performance/size ratio Frequency DC to 400 Hz Optional medical versions (B type) according to IEC/EN 60601-1 Snap-in versions (S ; S1 type) Hot inlet versions (HI type) Optional overvoltage protection (Z type) Different output connections offering maximum flexibility for assembly

Spec

  • Quantity:1piece
  • G***er : Male
  • Number of F***s : None
  • Switch Type : None
  • Termination Method : Faston
  • Current Rating : 3A
  • Voltage Rating : 250 V ac
  • Mounting Type : Panel Mount
  • Operating Frequency : 0 → 400Hz
  • IEC Connector Type : C14
  • Width : 48mm
  • Depth : 57.9mm
  • Height : 22.5mm
  • CODE No.:454-0934
