Spec

• Filtration area, cm

  ²

  : 127
• Filter diameter, mm: 142
• Diameter, cm (inch): 18.4
• Weight, kg (lb): 6.4 (14.1)
• Height, cm (inch): 27


  (including entrance connector)
• Seal material: PTFE
• Configuration material: 316 Stainless Steel with aluminum legs
• Outlet connection: 1 - 1/2


  in sanitary flange, with adapter for inner diameter 14


  mm (9/16


  in) hose
• Inlet connection: Connect to inner diameter 14


  mm hose at 1 1/2


  in TC flange included clamp and adapter
• Quantity/box: 1

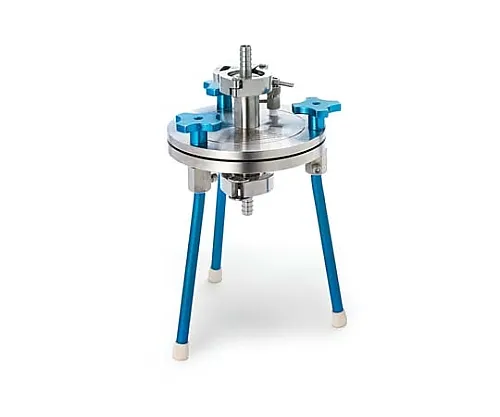

• Overview: Filter holder 142


  mm, Stainless Steel
• Product name: Filter holder
• Maximum input pressure, kPa (psi): 1379 (200)
• Maximum differential pressure, kPa (psid): 689 (100)
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
