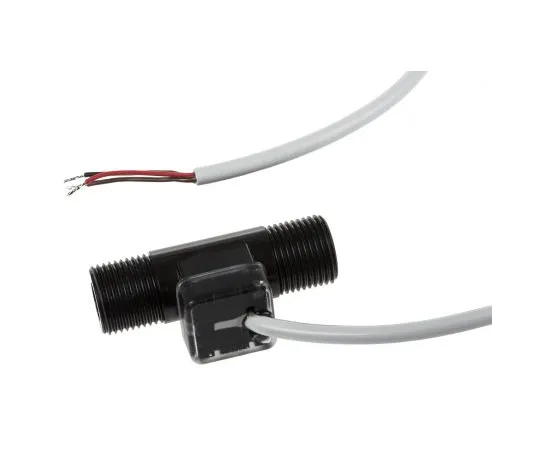

63-4796-41 Gems Sensors Turbine Flow Sensor, 1 L/min → 10 L/min, FT-110 Series 173037-C
Product Description
Product Model: 63-4796-41Product Brand: Gems Sensors Fe […]
Contact Us
Product Details
Product Model: 63-4796-41
Product Brand: Gems Sensors
Features
- FT-110 Series Turbine Flow Sensor. Gems™ hall effect turbine flow rate sensor is ideal for OEM applications involving low flow liquid monitoring. The low cost coupled with 1/2% repeatability makes it an ideal candidate for replacing dispensing timer systems. Turbine technology does not react to changes in the system pressure ca***d by ageing filters, unlike timing systems. The sensors standard power and output specifications make it easy to retrofit to existing controllers. Features and Benefits. Low Flow Rates of 0.5 L/min to 30 L/min. Accuracy ±3% of Reading. Mounts in Any Orientation. With cable
Spec
- Quantity:1piece
- Media Monitored : Liquid
- Device Type : Turbine
- Minimum Flow Rate : 1 L/min
- Maximum Flow Rate : 10 L/min
- Supply Voltage : 5 → 24 V dc
- Pipe Diameter Range : 3/8 in
- Connection Type : 3/8 BSP
- Maximum Pressure : 200psi
- Material : Nylon 12
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +100°C
- Series : FT-110
- CODE No.:446-8292
