Features

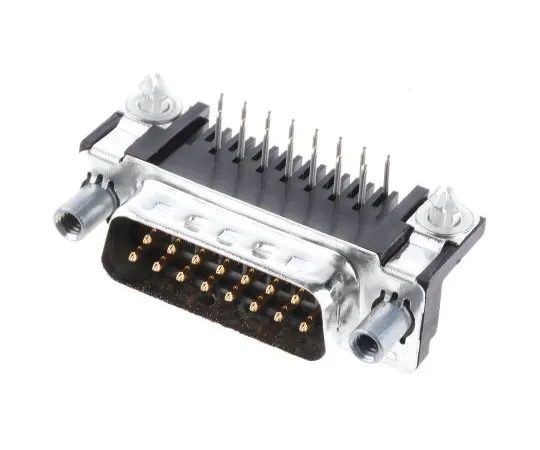

• The recommended pc board thickness is 1.58mm for connectors with boardlocks and 2.36mm max. for all others. For latching blocks see stock number ; 450-9371 450-9371 typically For locking post see stock number ; 450-9365 450-9365 typically. AMPLIMITE D-Sub Connector, HD-20 318 PCB Mount Series, with Screwlocks. AMPLIMITE HD-20 318 mount D-sub plug and receptacle connectors with fixed female screwlocks. These PCB mount D-sub connectors have an 8.08 footprint with right angle posts, tin plated steel front shells, 94V-0 thermoplastic housings and tin plated brass eyelets. The AMPLIMITE HD-20 318 mount D-sub Receptacle connectors are preloaded with size 20 DF posted socket contacts made from phosphor bronze and the Plug connectors are preloaded with size 20 DF posted pin contacts made from brass. Both socket and pin contacts have tin on the termination end with the entire contact nickel under plated along with two options of gold duplex plating on the mating end (please see datasheet for details). These AMPLIMITE HD-20 318 board mount D-sub connectors are also available with or without tin plated copper alloy boardlocks (please see datasheet for details). Tin plated steel shell Black thermoplastic 94V-0 housing Tin plated brass eyelets Zinc plated female screwlocks Tin plated copper alloy boardlocks 8.08mm footprint
