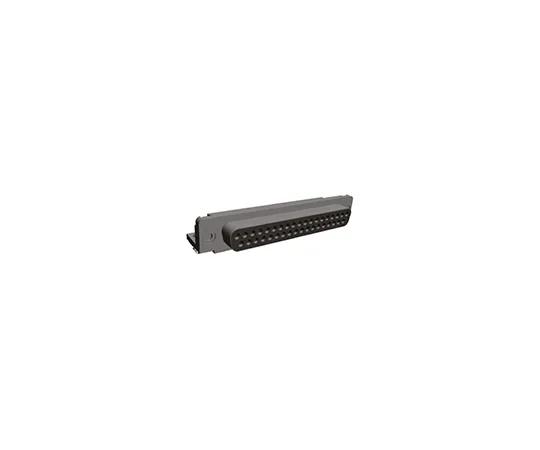

63-4796-24 TE Connectivity Amplimite HD-20 Series, 37 Way Right Angle Through Hole PCB D-sub Connector Socket, 2.75mm Pitch, with 5747847-4
Electronic/Electrical Parts and Controll Equipments

63-4796-24 TE Connectivity Amplimite HD-20 Series, 37 Way Right Angle Through Hole PCB D-sub Connector Socket, 2.75mm Pitch, with 5747847-4

model: 63-4796-24
brand: TE Connectivity

Product Description

Product Model: 63-4796-24Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4796-24
Product Brand: TE Connectivity

Features

  • The recomm***ed pc board thickness is 1.58mm for connectors with boardlocks and 2.36mm max. for all others. For latching blocks see stock number ; 450-9371 450-9371 typically For locking post see stock number ; 450-9365 450-9365 typically. AMPLIMITE D-Sub Connector, HD-20 318 PCB Mount Series, with Threaded Inserts. AMPLIMITE HD-20 318 mount d-sub plug and receptacle connectors with zinc threaded inserts. These PCB mount d-sub connectors have an 8.08 footprint with right angle posts, tin plated steel front shells, 94V-0 thermoplastic housings and tin plated brass eyelets. The AMPLIMITE HD-20 318 mount d-sub receptacle connectors are preloaded with size 20 DF posted socket contacts made from phosphor bronze and the plug connectors are preloaded with size 20 DF posted brass pin contacts. Both socket and pin contacts have tin on the termination *** with the entire contact nickel underplated along with two options of gold duplex plating on the mating *** (please see manufacturers datasheet). These AMPLIMITE HD-20 318 board mount d-sub connectors are also available with or without tin plated copper alloy boardlocks (please refer to manufacturers datasheet for details). Tin plated steel shell Black thermoplastic 94V-0 housing Tin plated brass eyelets Clear Chromate plated Zinc threaded inserts or screwlocks Tin plated copper alloy boardlocks 8.08mm footprint

Spec

  • Quantity:1piece
  • Number of Contacts : 37
  • G***er : Female
  • Body Orientation : Right Angle
  • Mounting Type : Through Hole
  • Pitch : 2.75mm
  • Mounting Hardware : 4-40 UNC Threaded Inserts, Boardlocks
  • Housing Material : Thermoplastic
  • Length : 69.31mm
  • Width : 12.54mm
  • Depth : 18.79mm
  • Dimensions : 69.31 x 12.54 x 18.79mm
  • Series : Amplimite HD-20
  • CODE No.:446-5192
