Features

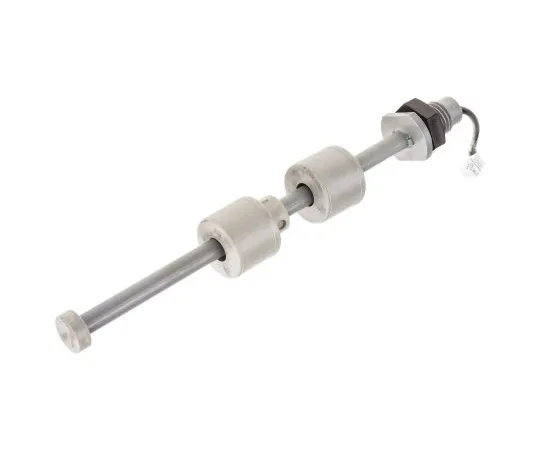

• The Cable entry point must NOT under any circumstances be submerged: – On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside. – On the vertical type the mounting thread and cable entry must be above the highest level of the liquid. UL recognised. Cynergy3 RSF66 Double Float Switches. The Cynergy3 RSF66 dual switch point series are float switches for high and low level switching. The RSF66 float switches are made using Polyphenylene Sulphide (PPS) in grey, which is ideal for a wide range of different liquids. This makes the RSF66 range versatile for different applications. Dual float switches can be ***d to control filling or emptying tanks with electromechanical relays.. What length cable do they come with? The RSF66 series comes with a 1m standard cable length with flying lead. It is a four core PVC cable. What temperature can they withstand? -10°C to +85°C / +14°F to +185°F What is their power capacity? RSF66 float switches have a power capacity of 25VA. Approvals: WRAS, UL and NSF approved Versions Available (including upper/lower switch levels): ( ; 446-2597 446-2597 ) RSF66B50B150 - Double 50/150mm Filling Control ( ; 446-2581 446-2581 ) RSF66B50B100 - Double 50/100mm Filling Control ( ; 446-2575 446-2575 ) RSF66A50A150 - Double 50/150mm Emptying Control ( ; 446-2569 446-2569 ) RSF66A50A100 - Double 50/100mm Emptying Control ( ; 348-7983 348-7983 ) RSF66A25B75 - Single 30/75mm ( ; 348-7999 348-7999 ) RSF66A25B100 - Single 30/100mm ( ; 348-8009 348-8009 ) RSF66A25B125 - Single 30/125mm ( ; 348-8015 348-8015 ) RSF66A25B150 - Single 30/150mm ( ; 348-8021 348-8021 ) RSF66A25B175 - Single 30/175mm
