65-3535-04 ［Out of stock］Temperature Sensor Contact Support for High Performance Static Surfaces Type SX Series with ISO Documents -50~300°C 90° 100 mm Type E SX-163E-01-1-TPC1-ASP
Product Description
Product Model: 65-3535-04Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3535-04
Product Brand: ANRITSU METER CO., LTD.
Features
- The SX series is a high-performance temperature sensor with a "±4° contact support function" that allows the sensor's temperature sensitive part to follow and adhere to the object to be measured.
- High-level measurement that pursues response speed and durability can be easily performed.
- [Application] Preheating temperature control and temperature measurement of billets, etc.
Spec
- Material: Head Material/Liquid Crystal Polymer, Pipe Material/Stainless Steel (SUS316), Contact Plate Material/Inconel Thickness, Grip Material/Polyacetal
- Operating temperature range (°C): -50~300
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 1
- Durability: More than 100,000 cycles at 300°C
- Head Size (φmm): 15
- Head Type: High Temperature Type
- Pipe Shape: 90°
- Type of thermocouple: Type E
- Pipe length (mm): 100
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 3.8
- Coating Material: Polyurethane
- Heat-resistant Temperature (°C): 110
- Plug Shape: Standard Plug
- Calibration Temperature Point: 100, 200, 300°C
- Document content: Inspection report, calibration certificate, traceability system diagram
Related product recommendations
You may also be interested in the following products
toner
67-4847-73 HNT General Purpose Pressure Gauge (for Steam/M) AMT3/8-100:0.3MPA 0354-01-0016680
model: 67-4847-73
brand: Daiichi Keiki Mfg
toner
61-9653-54 ［Discontinued］Stainless Steel Specific Gravity Cup (Pycnometer) 50cc 1503/50
model: 61-9653-54
brand: Sheen Instruments
toner

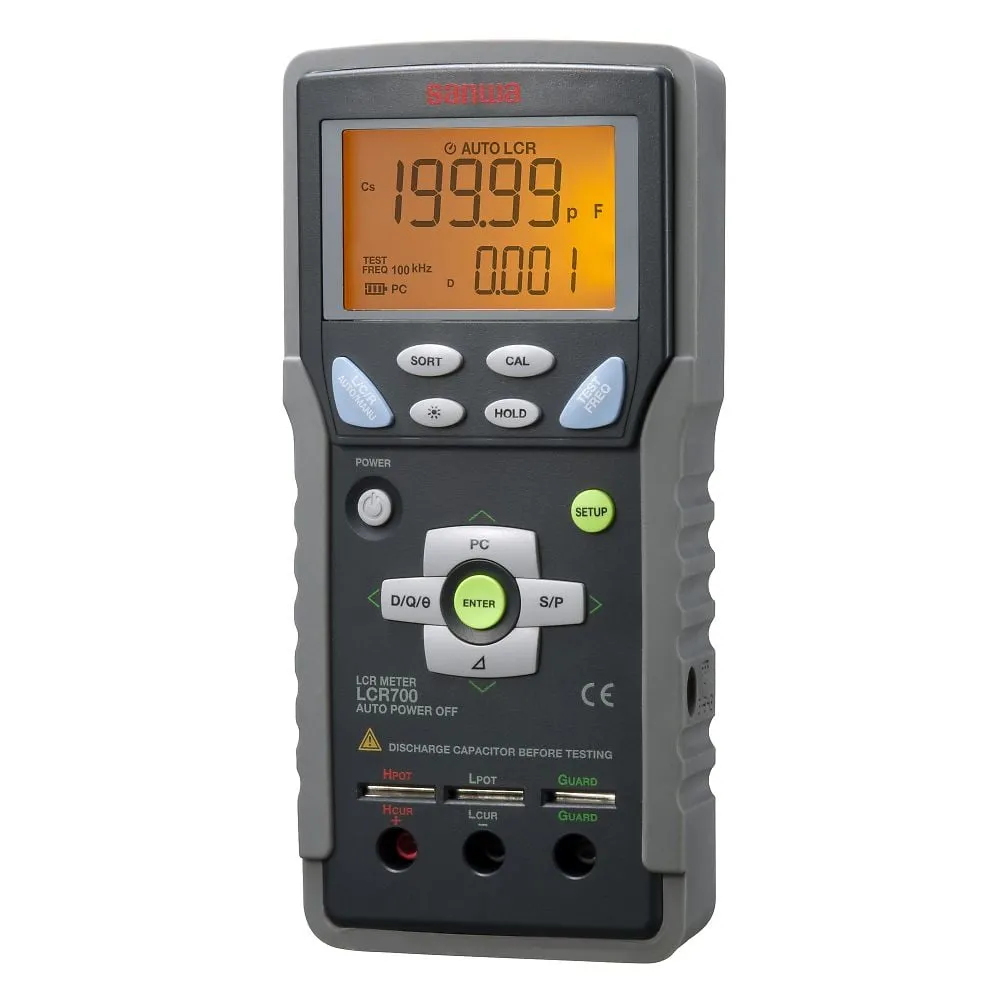

62-0854-82 ［Discontinued］LCR Meter Calibration Document 3 Points (Brand New Calibration) LCR700
