65-3532-81 ［Out of stock］Temperature Sensor for Static Surface Type A Series with ISO Document Set -50~800°C Straight, Parallel 100 mm Grip Type E A-241E-01-1-TC1-ASP
Product Description
Product Model: 65-3532-81Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3532-81
Product Brand: ANRITSU METER CO., LTD.
Features
- A-Series is a general-purpose temperature sensor for stationary surfaces.
- We can measure the surface temperature of any object, not just the mold surface.
- [Application] Surface temperature control and temperature measurement of resin molded metal molds
- Surface temperature control and temperature measurement of iron plate
- Temperature control and temperature measurement during asphalt paving
Spec
- Material: Pipe Material/Stainless Steel (SUS316), Grip Material/Polyacetal
- Operating temperature range (°C): -50~800
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 1.5
- Durability: 75000 cycles or more
- Head Size (φmm): 15
- Guard Material and Contact Plate Coating: Stainless Steel Guard (For High Temperature)
- Pipe shape and contact plate orientation: straight, parallel
- Type of thermocouple: Type E
- Pipe length (mm): 100
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
- Calibration Temperature Point: 100, 300, 500°C
- Document content: Inspection report, calibration certificate, traceability system diagram
Related product recommendations
You may also be interested in the following products
toner
65-4317-37 Small Pressure Gauge (40Φ) 0.2 MPa GK68-161
model: 65-4317-37
brand: NAGANO KEIKI Co., Ltd.
toner
61-4670-15 Sensepoint RTD Ammonia Sensor 2106B1513
model: 61-4670-15
brand: Honeywell International, Inc.
toner
64-5181-91 High Precision Electronic Balance (Specified Measuring Instrument) with JCSS Calibration 1500g ALE1502H
model: 64-5181-91
brand: SHINKO DENSHI CO., LTD.
toner

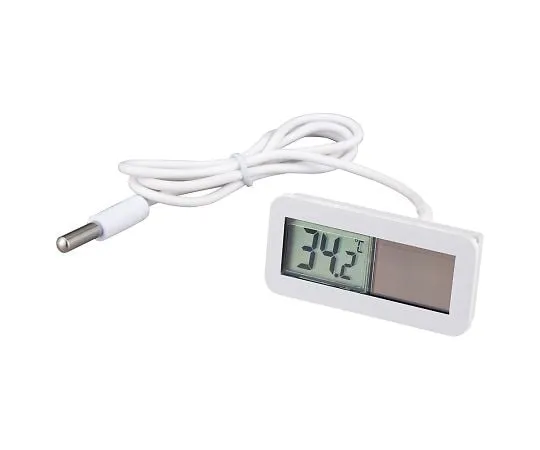

4-2245-01 ［Discontinued］Solar Digital temperature Module S-W11
