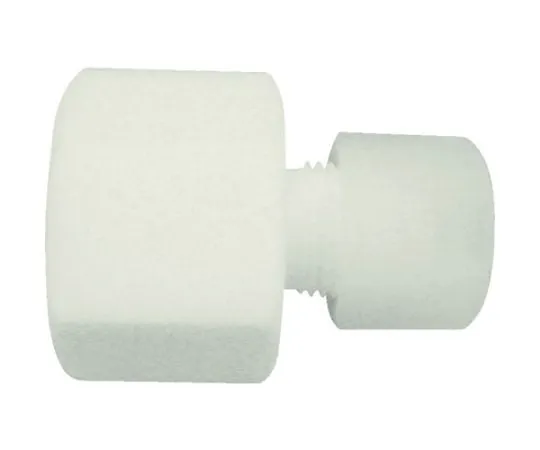

61-3226-67 Female Connector RC1/8 x 4mm 9510H-FC6-1
Product Description
Product Model: 61-3226-67Product Brand: NICHIAS Corpora […]
Contact Us
Product Details
Product Model: 61-3226-67
Product Brand: NICHIAS Corporation
Features
- Simply insert the tube into the set nut of the fitting body until it hits the stopper and tighten the union nut to achieve the specified performance.
- Has excellent chemical resistance.
Spec
- Screw thread size Rc1/8
- Inner diameter (mm): 4
- Applicable tube outer diameter (mm): 6
- Mass (g): 9
- Temperature of continuous using: -15 - 150℃
- Continuously ***d pressure: MAX (for 1mm thick tube) 1MPa (10kgf/cm2) at 25℃
- Application fluid: Most acid, Alkali, Solvent
- Female connector
- Tube inlet diameter (mm): 6.5
- Fluororesin (PTFE), nut part: Fluororesin (PFA, PTFE)
- Production country: Japan
- Manufacturer's model number: 9510HFC61
- Code number: 283-0329
