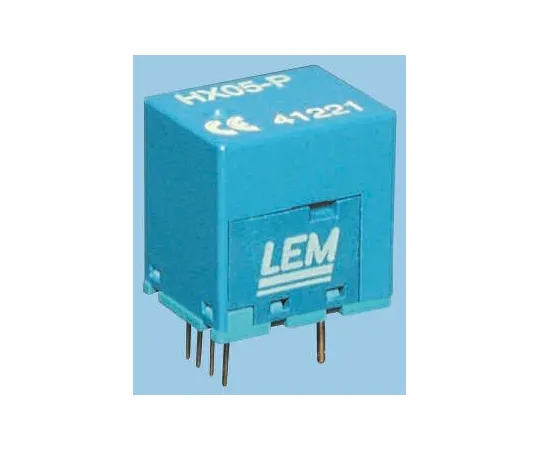

63-4793-97 LEM HX Series Open Loop Current Sensor, ±15A nominal current HX 05-P/SP2
Product Description
Product Model: 63-4793-97Product Brand: LEM Features HX […]
Contact Us
Product Details
Product Model: 63-4793-97
Product Brand: LEM
Features
- HX - P/SP2 Series. Open Loop Hall Effect current transducers with integral primary connections for the accurate measurement of current. Open Loop (low power consumption) AC,DC, and mixed signal measurement Ext***ed measuring range (3xlpn) Small size HX 03-20 (23.5x15.8x19mm) HX 25-50 (20x19x15.4mm) Multi turn Primary Unipolar power supply Operating Temperature Range -25 to +85°C Supply voltage 12/14Vdc Load Resistance 2KΩ Insulation test voltage 3kV Frequency Bandwidth 50kHz Body Mat'l UL94-V0 Weight 8g
Spec
- Quantity：1piece
- Sensor Technology : Open Loop
- Nominal Current : ±15A
- Supply Voltage : 12 → 15 V
- Sensor Type : Hall Effect
- Mounting Type : PCB Mount
- Frequency Bandwidth : 50 kHz
- Accuracy : ±1 %
- Minimum Operating Temperature : -25°C
- Maximum Operating Temperature : +85°C
- Depth : 15.4mm
- Height : 20.5mm
- Width : 19mm
- CODE No.:435-8690
