Features

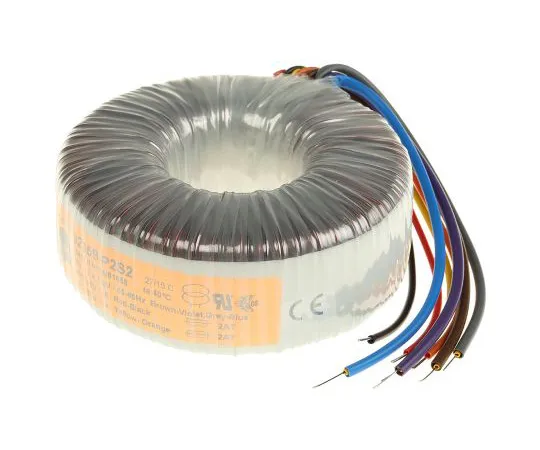

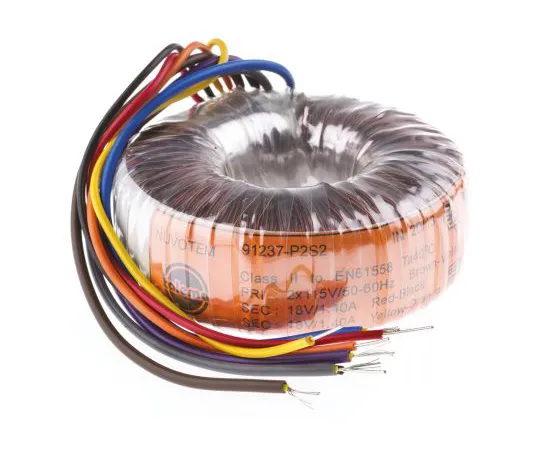

• Under no circumstances should both ***s of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'. UL506, EN61558. Full mounting kit. Open Style with Leads, 115/230Vac Primary 15VA to 1000VA. High quality open style toroidal transformers with twin 115Vac 50/60Hz primary windings which may be connected in series for 230V or parallel for 115V operation. Twin secondary windings may be connected in series or parallel or ***d indep***ently. Small size and low weight compared with traditional stacked lamination types Extremely low level of radiated magnetic field Very low induced noise (hum) Very low iron loss Double insulated primary leads Supplied with mounting kit 100% electrical and flash tested
