63-4790-14 Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±2 %, 44 x 21 mm EMV 1025S-01
Product Description
Product Model: 63-4790-14Product Brand: Lascar Features […]
Contact Us
Product Details
Product Model: 63-4790-14
Product Brand: Lascar
Features

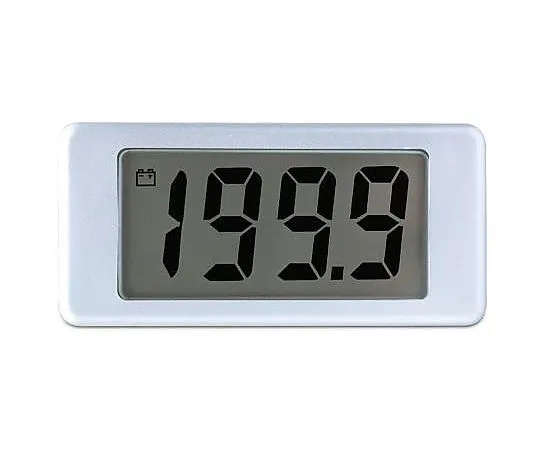

- 12.5mm, 3.5 Digit 3-wire Voltmeter, Lascar EMV1025S. EMV 1025S is an easy to mount LCD digital voltmeter. It features full scale reading, fitted to the panel by locating its screw threaded stud through the hole, adding the washer and tightening the nut provided. The module's connections pass through the hollow stud into the target application. Installation time is greatly reduced with only 3 wires to connect. The ***r need only drill a single 5.5mm hole in the panel. Single hole mounting 12.5mm LCD digit height Full scale reading with different versions: - 200mV - 2V - 20V - 200V - Different Decimal Point configurations 3-Wire connection Auto-zero, auto-polarity Low battery warning Splashproof
Spec
- Quantity：1piece
- Current Type : DC
- Number of Digits : 3.5
- Display Type : LCD
- Cutout Height : 44mm
- Cutout Width : 21mm
- Depth : 9mm
- Meter Accuracy : ±2 %
- Analogue Effect : Digits Only
- Minimum Temperature : 0°C
- Maximum Temperature : +50°C
- CODE No.:419-9356
